Removing And Installing The Instrument Panel Bracket
NOTE:
- Before removing the instrument panel bracket, the instrument panel must be disassembled. See REMOVING AND INSTALLING THE INSTRUMENT PANEL BRACKET .

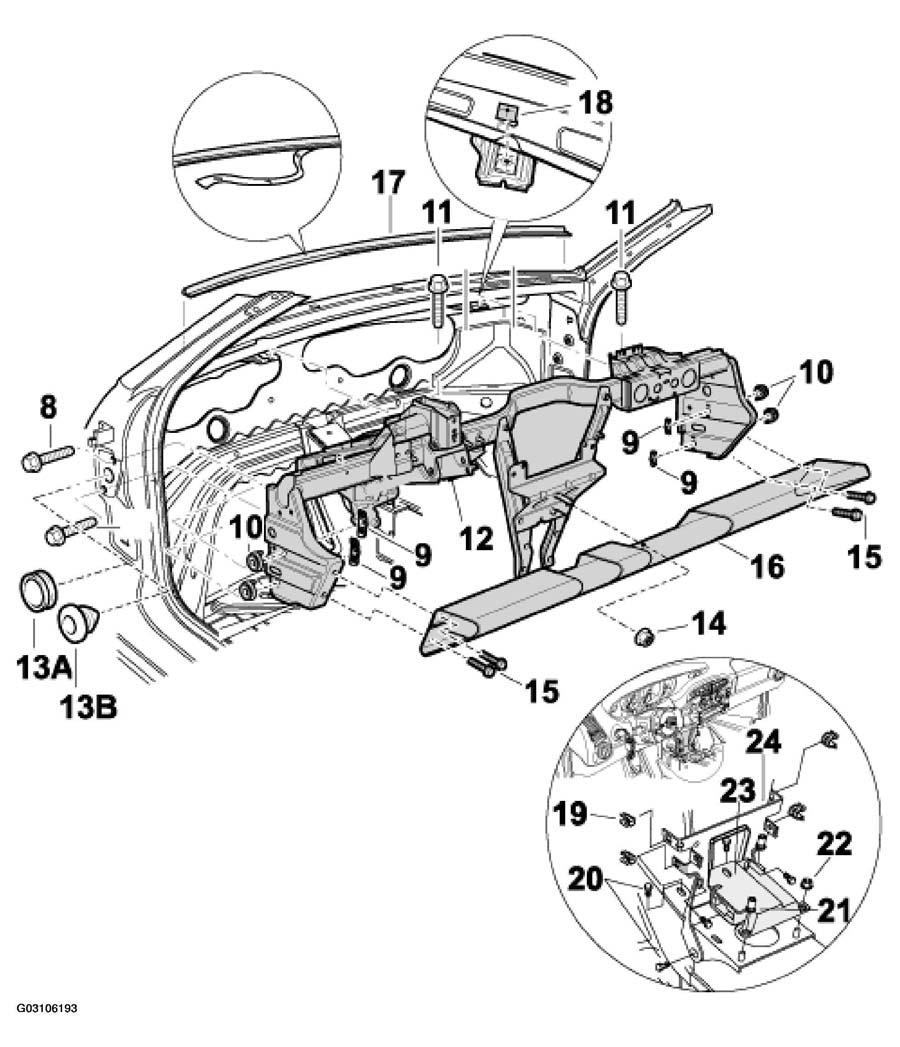

REMOVAL AND INSTALLATION PROCEDURE FOR INSTRUMENT PANEL BRACKET
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 8(1) | Fastening screws | 4 | See TIGHTENING TORQUE . | |||
| 9(1) | Threaded plate | 4 | Is screwed into position with the compensating element -10-8- (1) | |||
| 10(1) | Compensating element | 4 | The compensating element -10-8- (1) | By screwing in the fastening screws -8-10- (1) | ||
| 11(1) | Fastening screws | 2 | See TIGHTENING TORQUE . | |||
| 12(1) | Instrument panel bracket | 1 | Undo the fastening screws -8-10-12- (1) | Insert instrument panel bracket -12-10-8 and 11- (1) | ||
| 13A(1) | Closure cap | 2 | Pull out. | Press in. | ||
| 13B(1) | Plug | 2 | Only installed on 911 coup"EACUTE"A versions. | |||
| 14(1) | Sheetmetal clip | 4 | Check, replace if necessary. | |||
| 15(1) | Fastening screws | 4 | See TIGHTENING TORQUE . | |||
| 16(1) | USA version, knee protector strip | 1 | Unscrew fastening screw -15-16- (1) | Secure the knee protector strip -16-12-15- (1) | ||
| 17(1) | Cowl panel seal | 1 | is destroyed when removed. | Tighten protective film. | ||
| 18(1) | Adhesive pad | 1 | Is destroyed when removed. |
The bonding area must be free of dust and grease. Tighten protective film and position it. |
||
| 19(1) | Clip | 4 | ||||
| 20(1) | Fastening screws | 4 | See TIGHTENING TORQUE . | |||
| 21(1) | Shear-off nut | 2 | Undo the shear-off nut with special tool 9259. | |||
| 23(1) | Airbag control module | 1 | Refer to REMOVING AND INSTALLING TRIGGERING UNIT FOR AIRBAG . | Refer to REMOVING AND INSTALLING TRIGGERING UNIT FOR AIRBAG . | ||
| 24(1) | Cover panel | 4 | Fix the cover panel in the body and the instrument panel bracket -12-20- (1) | |||
|
||||||
