Removing And Installing The Instrument Panel

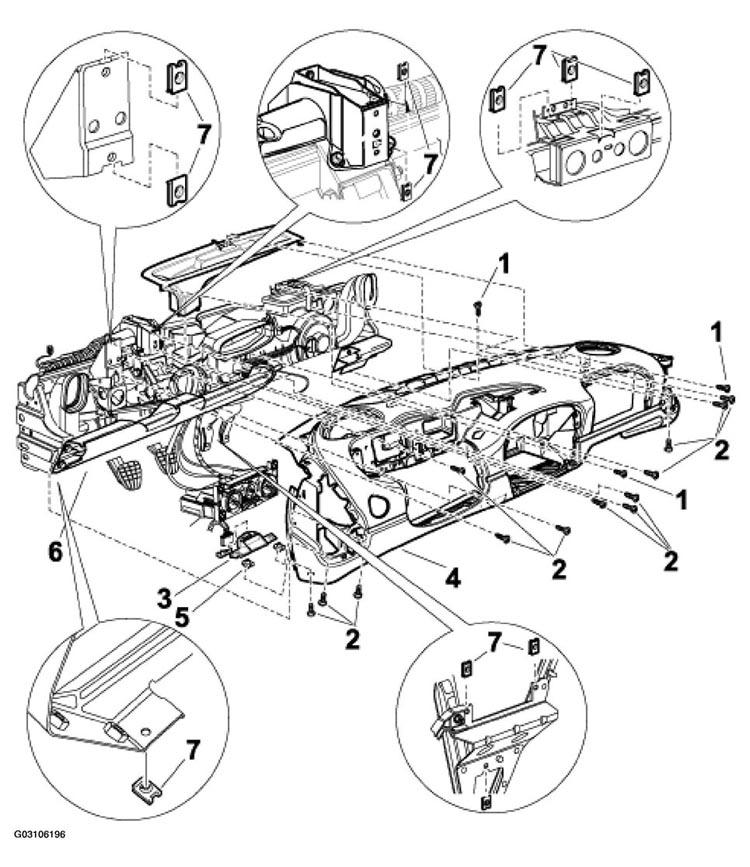

Fig 1: Removing And Installing Instrument Panel And Instrument Panel Bracket - As Of Model Year 2003
NOTE:
- Before removing the instrument panel, the instrument panel must be disassembled. See DISASSEMBLING THE INSTRUMENT PANEL .
REMOVAL AND INSTALLATION PROCEDURE FOR INSTRUMENT PANEL
| Nr. No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Fastening screws | 3 | Unscrew fastening screws -1-4- (1) | Screw the instrument panel -4-1- (1) | ||
| 2(1) | Fastening screws | 13 | Undo fastening screws -2-4- (1) | Screw the instrument panel -4-2- (1) | ||
| 3(1) | On-Board Diagnosis (OBD) socket | 1 | Unscrew fastening screws -2- (1) | Tighten the fastening screws -2- (1) | ||
| 4(1) | Instrument panel | 1 | See: Position -1 and 2- (1) | See: Position -1 and 2- (1) | ||
| 5(1) | Sheetmetal nut | 2 | Unscrew fastening screws -2- (1) | Inspect and replace if necessary. | ||
| 6(1) | Instrument panel bracket with knee protector strip | 1 | ||||
| 7(1) | Sheetmetal nut | 11 | Unscrew fastening screws -1 and 2-4- (1) | Inspect and replace if necessary. | ||
|
||||||
