Removing A-Pillar Trim

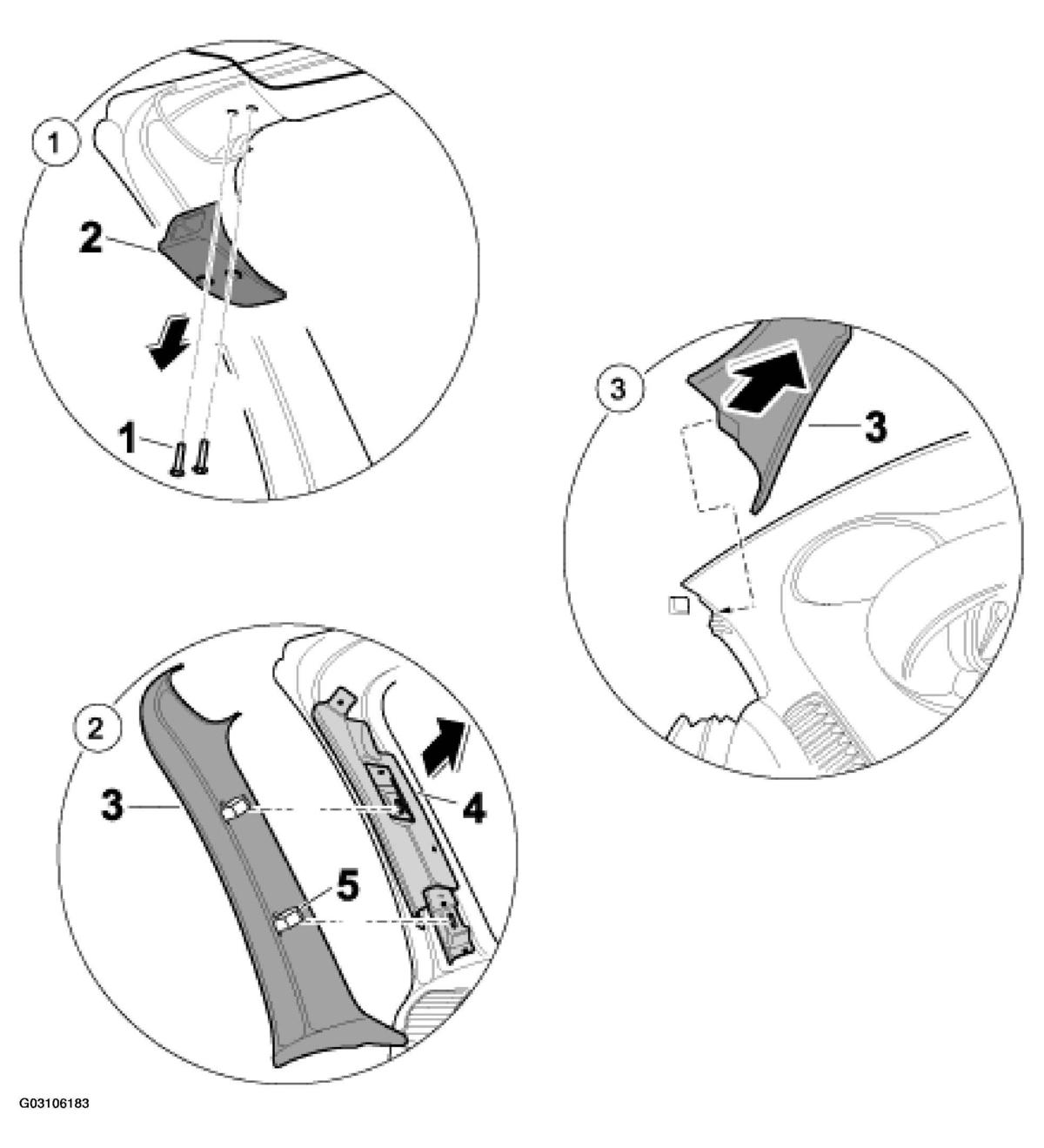

Fig 1: Removing A-Pillar Trim

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REMOVAL PROCEDURE FOR A-PILLAR TRIM

No.

Procedure

Instructions

1⁽¹⁾

Remove convertible-top peg housing

Unscrew fastening screw -1-2- ⁽¹⁾

2⁽¹⁾

Unclipping the A-pillar trim

Pull the A-pillar trim -7-direction of arrow- ⁽¹⁾

3⁽¹⁾

Removing the A-pillar trim

Remove the A-pillar trim -3-in the direction of the arrow- ⁽¹⁾

⁽¹⁾	For explanation see Fig 1
