Removing Holder

  1. Removing holder

    Unscrew fastening screws -1-  from the holder -A or B-  . See Fig 1 .

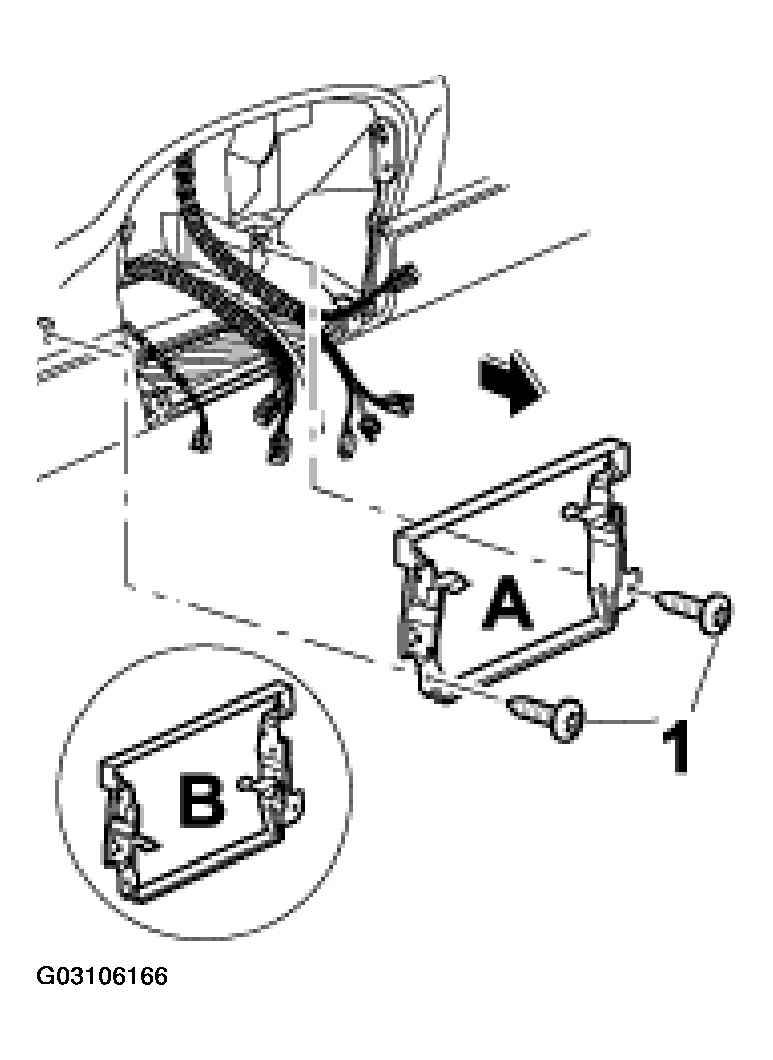

    Fig 1: Removing Holder
    G03106166Courtesy of PORSCHE OF NORTH AMERICA, INC.
