Affected pins

CDR23 control module, plug E, pins 1 and 2

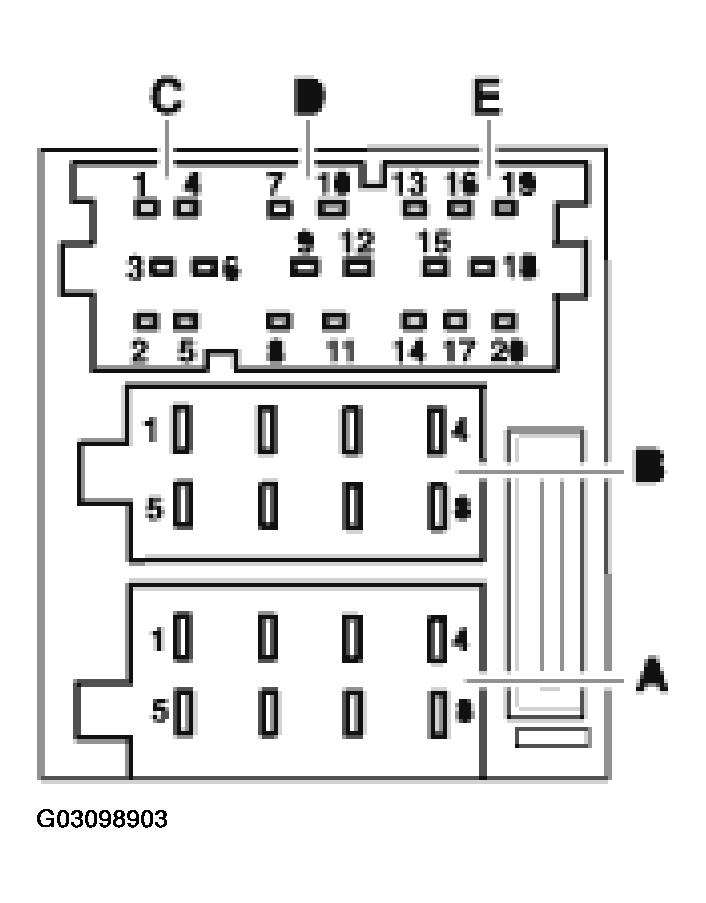

Fig 1: Identifying Pins Of 8005 CDR23 Connector
G03098903Courtesy of PORSCHE OF NORTH AMERICA, INC.
