Affected pin

PCM2 control module, plug C, yellow, pins 1 and 2

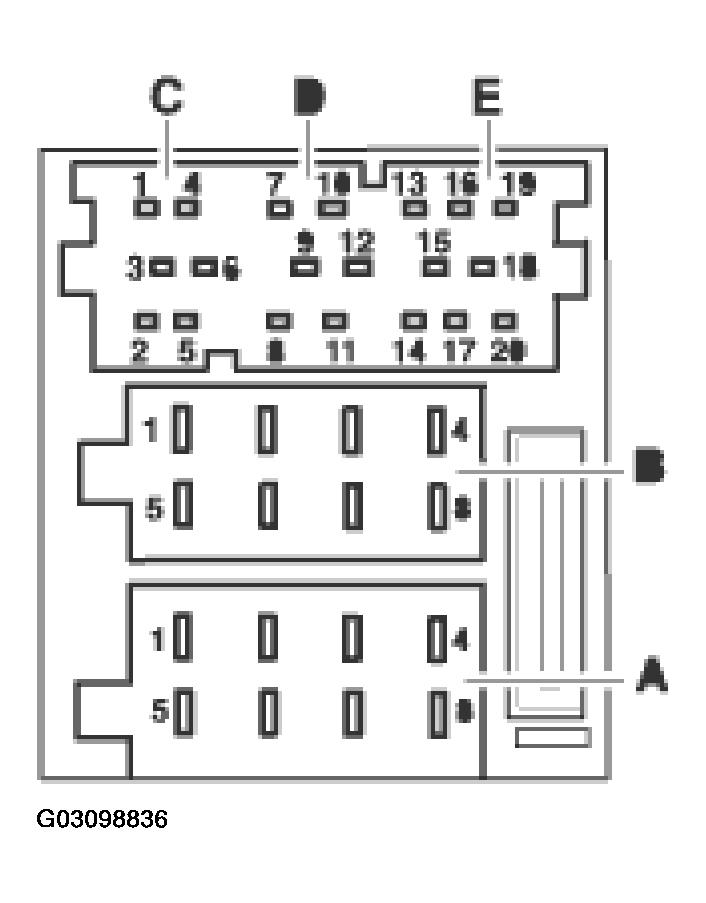

Fig 1: Identifying PCM2 Control Module, Plug C, Yellow, Pins 1 And 2

G03098836

Courtesy of PORSCHE OF NORTH AMERICA, INC.
