8003 External Harman amplifier
>>
Fault in front loudspeaker
>>
Affected pin
Affected pin
External Harman amplifier, plug A, pins 14 and 15

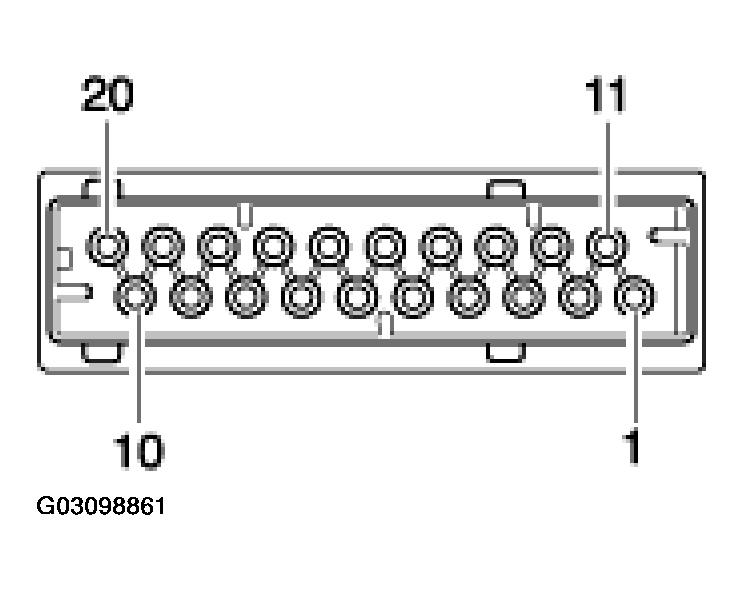

Fig 1: Identifying Pins Of 8001 External Harman Amplifier Connector
Courtesy of PORSCHE OF NORTH AMERICA, INC.
