Installing Orientation Lighting (Led Light-Emitting Diodes)

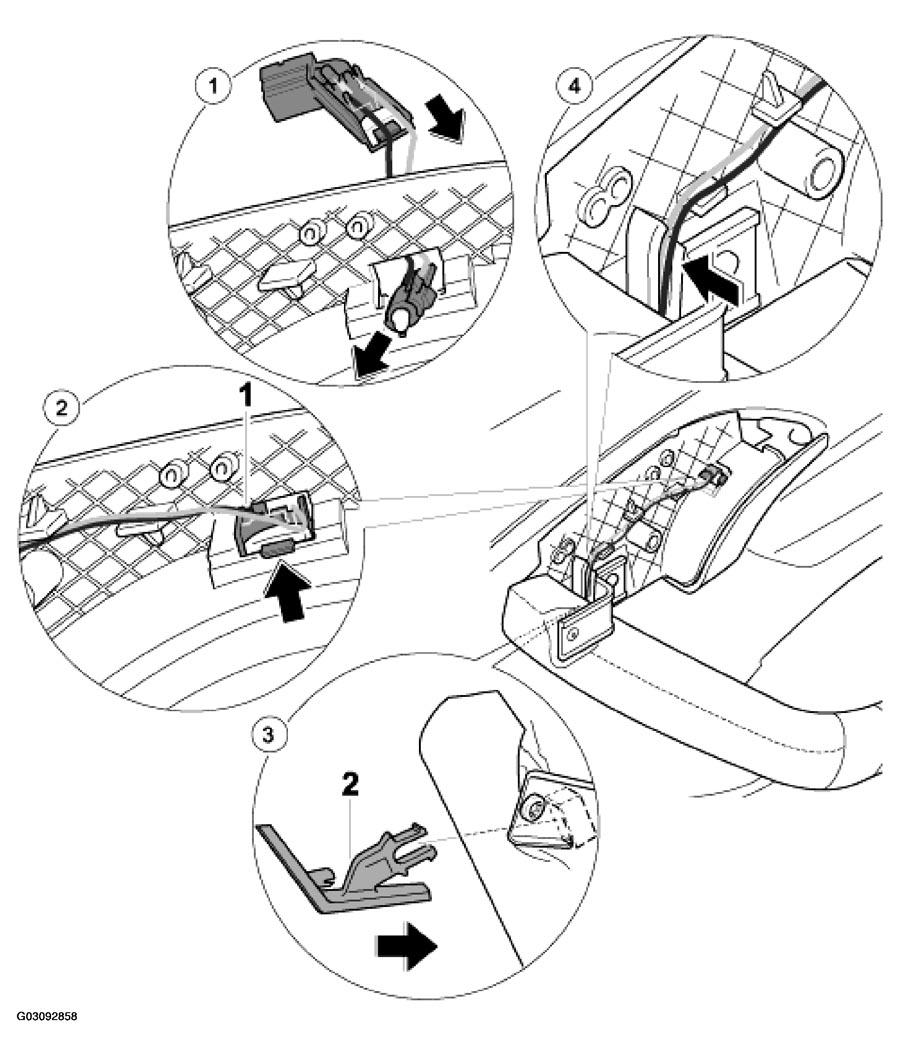

Courtesy of PORSCHE OF NORTH AMERICA, INC. ORIENTATION LIGHTING (LED LIGHT-EMITTING DIODES) INSTALLATION PROCEDURE (1 OF 2)
| No. |
Procedure |
Instructions |
| 1 |
Inserting LED unit into the door handle |
Insert LED unit into the door handle from the rear. |
| 2 |
Installing the plug housing -1- |
Insert the plug housing -1- |
| 3 |
Installing light-emitting diode housing -2- |
Push the light-emitting diode housing -2- |
| 4 |
Laying leads |
Insert the leads into the guides -arrow- |
| |
Installing cover for inner door release |
Refer to REMOVING AND INSTALLING DOOR TRIM PANEL
. |
