DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P1600: CAN Timeout, PSM - Signal Implausible
>>
216 CAN Timeout, PSM - Signal Implausible
>>
Diagnosis conditions
Diagnosis conditions
Vehicle has PSM
Battery voltage greater than 7 V
Engine running

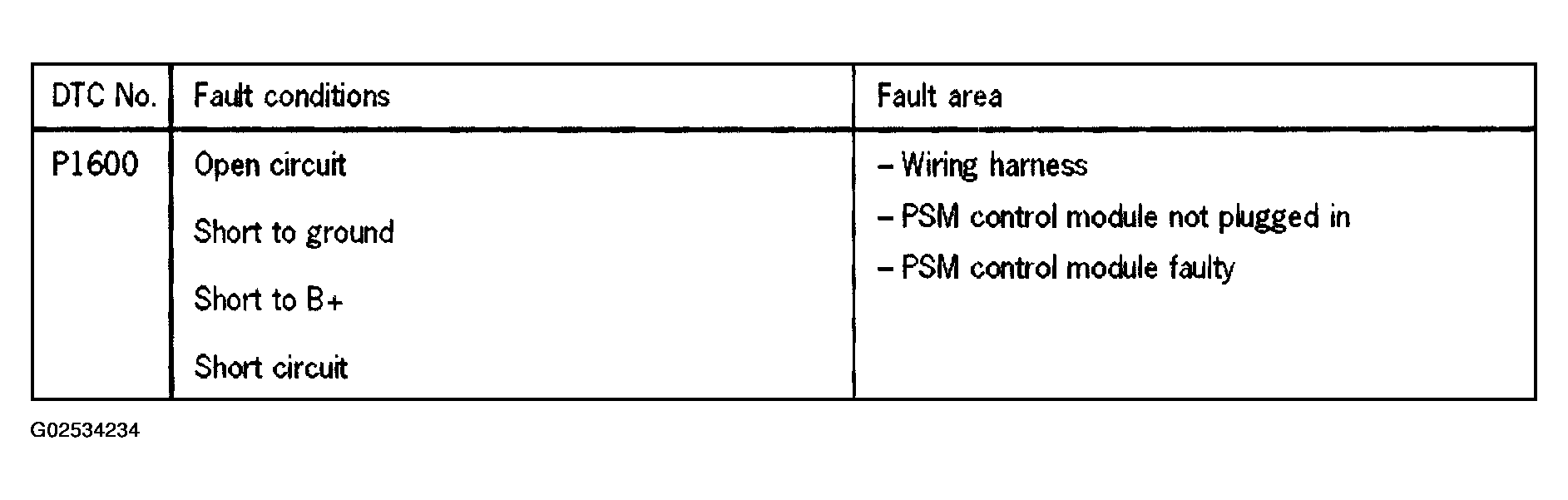

Fig 1: DTC P1600 Fault Conditions
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
