DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P1577: Accelerator Pedal Potentiometer 1 - Above Limit
>>
Wiring Diagram
DTC P1577: Accelerator Pedal Potentiometer 1 - Above Limit: Wiring Diagram

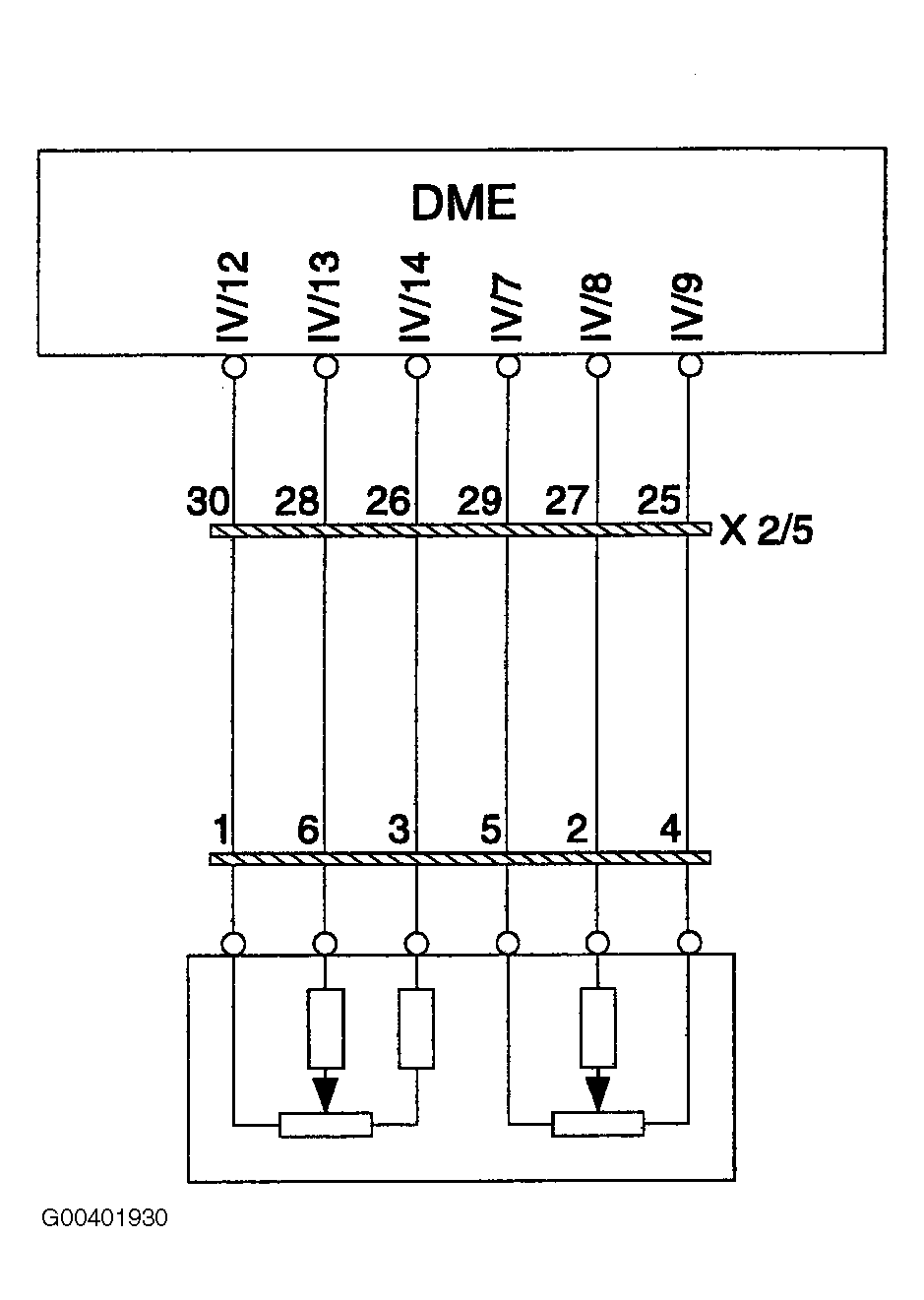

Fig 1: DTC P1577 Wiring Diagram
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
