Diagnosis Conditions

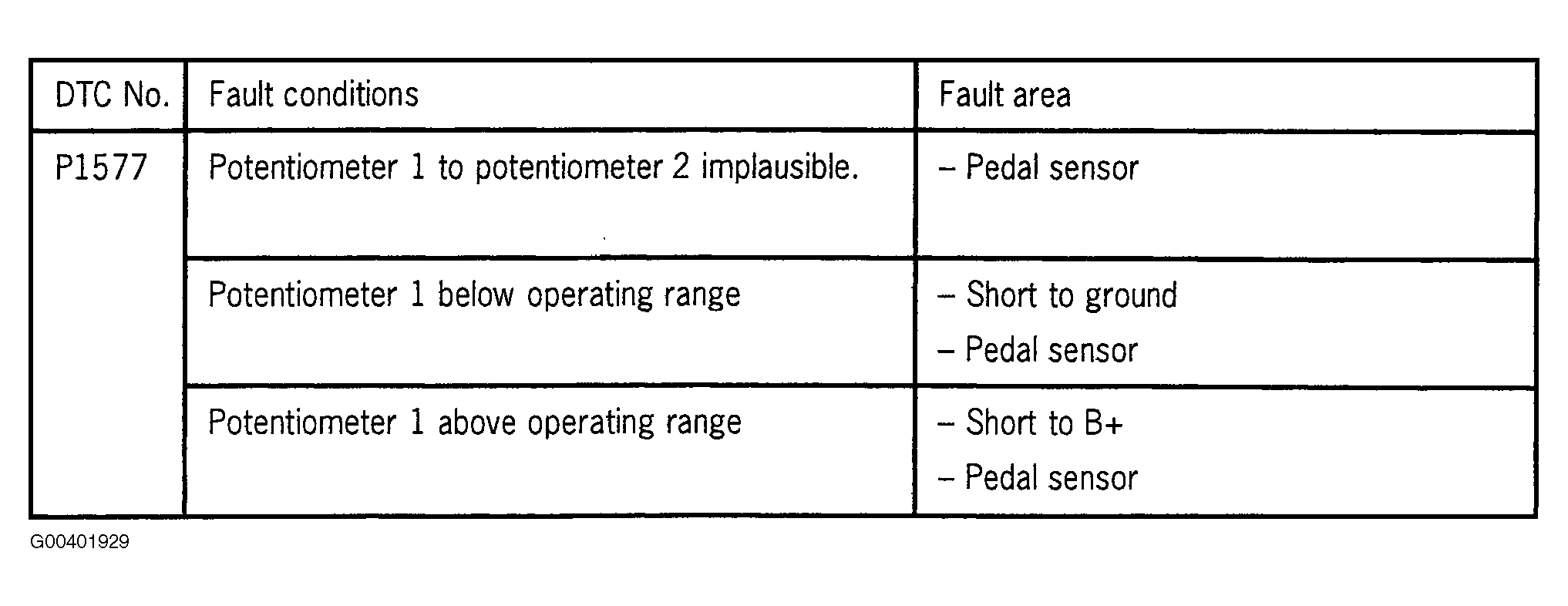

Fig 1: DTC P1577 Fault Conditions
G00401929Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE: The system operates in pedal sensor standby mode, i.e. the angle of the accelerator pedal is calculated from the residual potentiometer signal. The maximum pedal value is limited to 40% and the increase in the pedal value equals 10% per sec. maximum.
