Check wiring from DME control module, pin III/42, to throttle part, pin 4, for continuity

  1. Connect special tool 9637 to wiring harness

    (DME control module connector).

  2. Remove connector of throttle part.

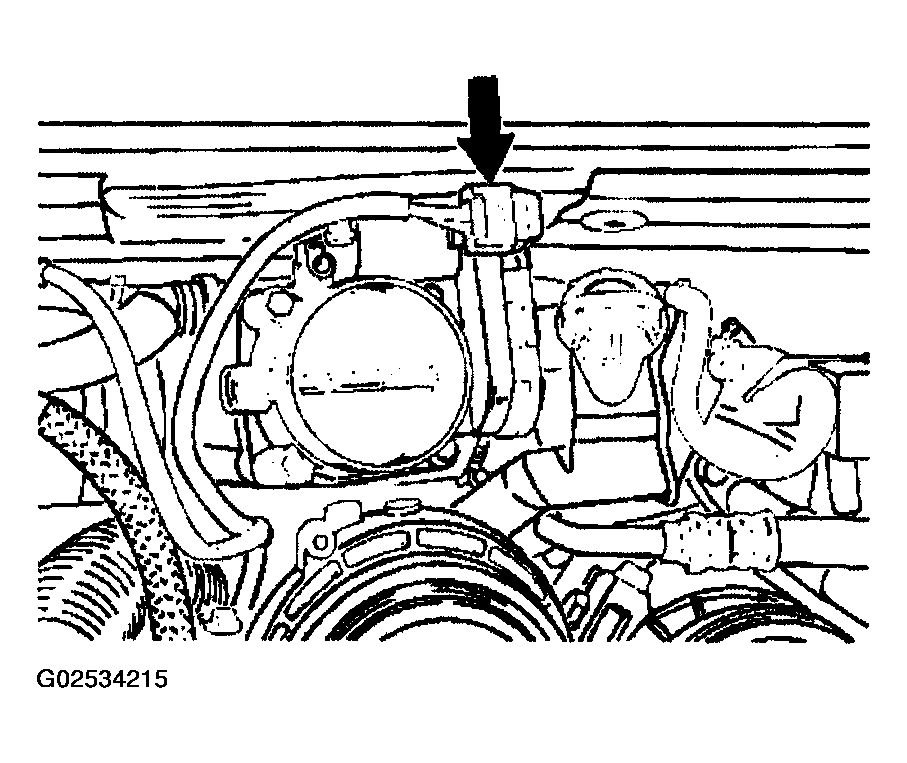

    Fig 1: Disconnecting Throttle Part Connector
    G02534215Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Connect ohmmeter to special tool 9637, pin III/42, and throttle part connector, pin 4.

    Display: 0 - 5 ohms

    If infinity ohms is displayed, check wiring harness for chafing and pinching damage.
