Diagnosis Conditions

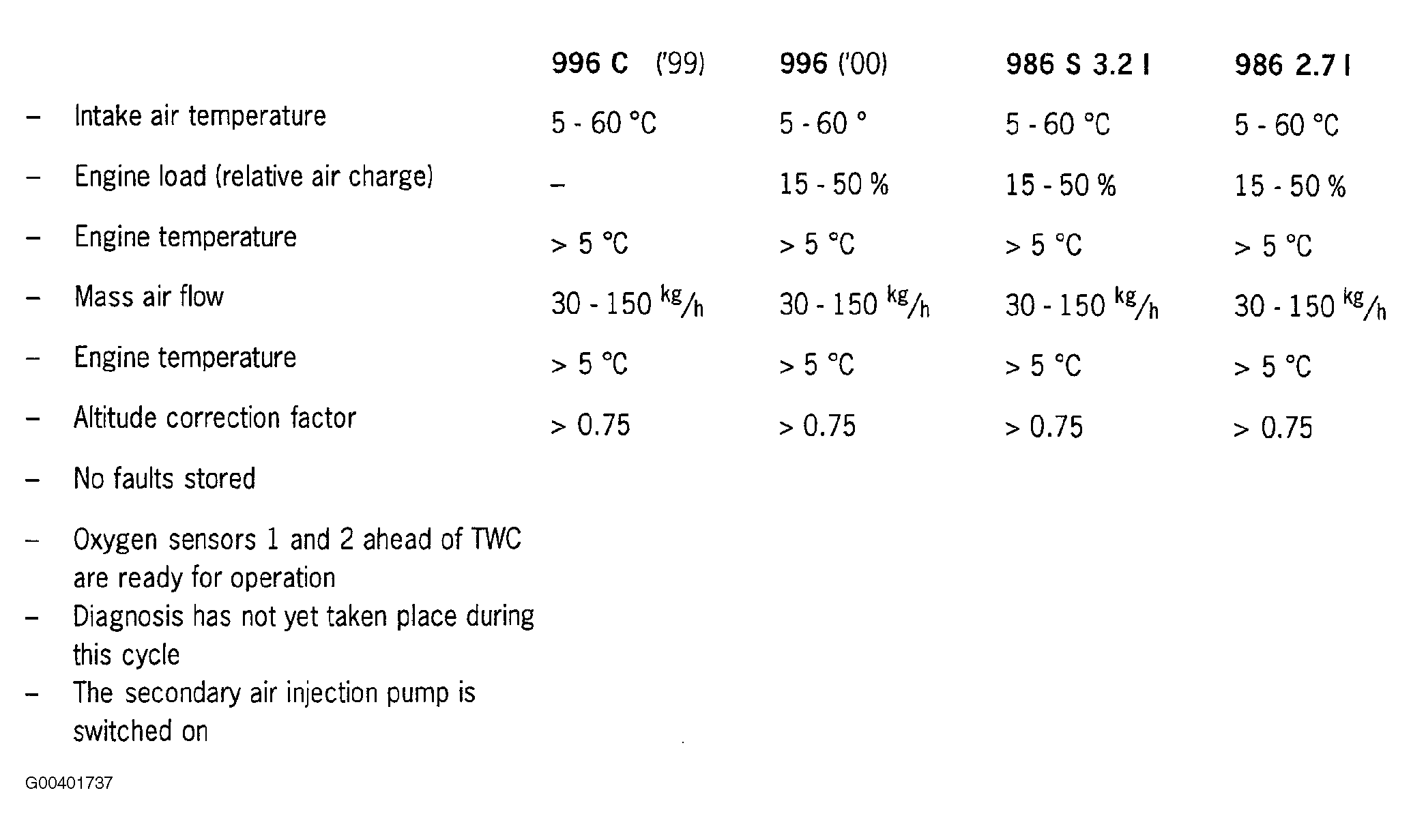

Fig 1: DTC P0410 & P1411 Diagnosis Conditions

Courtesy of PORSCHE OF NORTH AMERICA, INC.

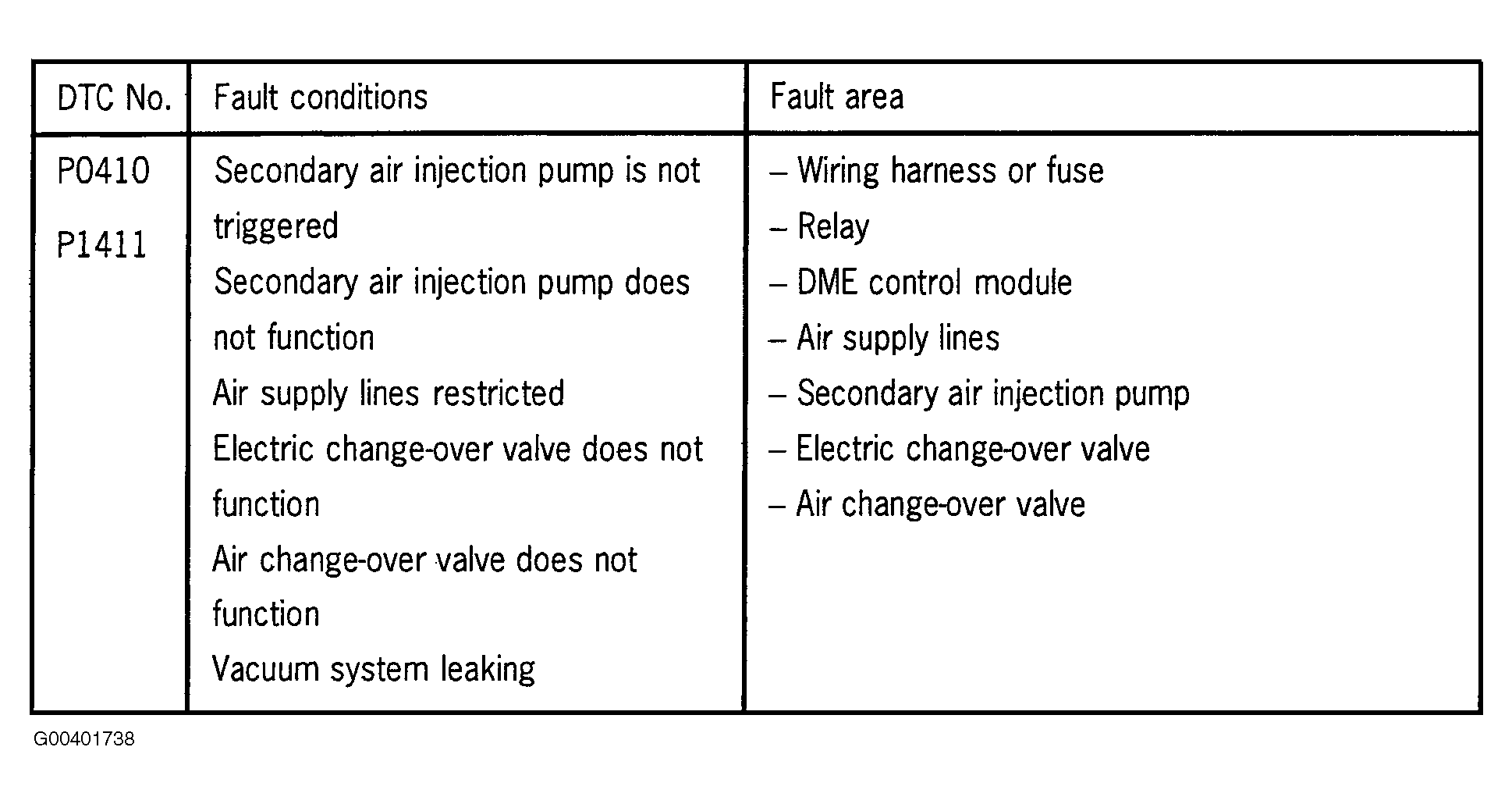

Fig 2: DTC P0410 & P1411 Fault Conditions

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Secondary air diagnosis can be activated with the Porsche System Tester 2 in the Short Test menu.
