DTC P1341: Camshaft Adjustment, Bank 1 - Signal Implausible: Wiring Diagram

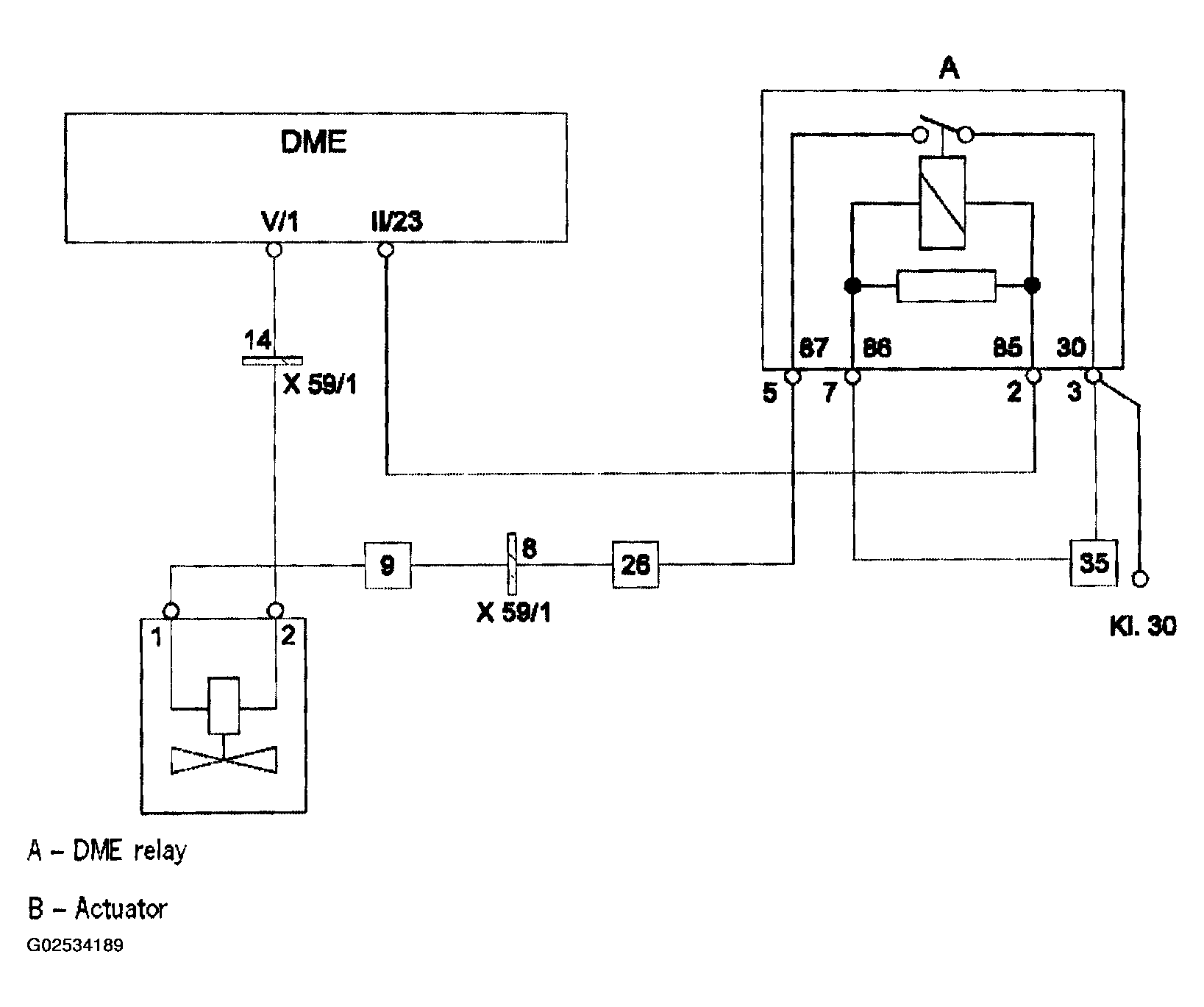

Fig 1: DTC P1341 Wiring Diagram

G02534189

Courtesy of PORSCHE OF NORTH AMERICA, INC.
