Check triggering wire for short to ground

  1. Connect special tool 9637 to wiring harness

    (DME control module connector).

  2. Remove connector of actuator.

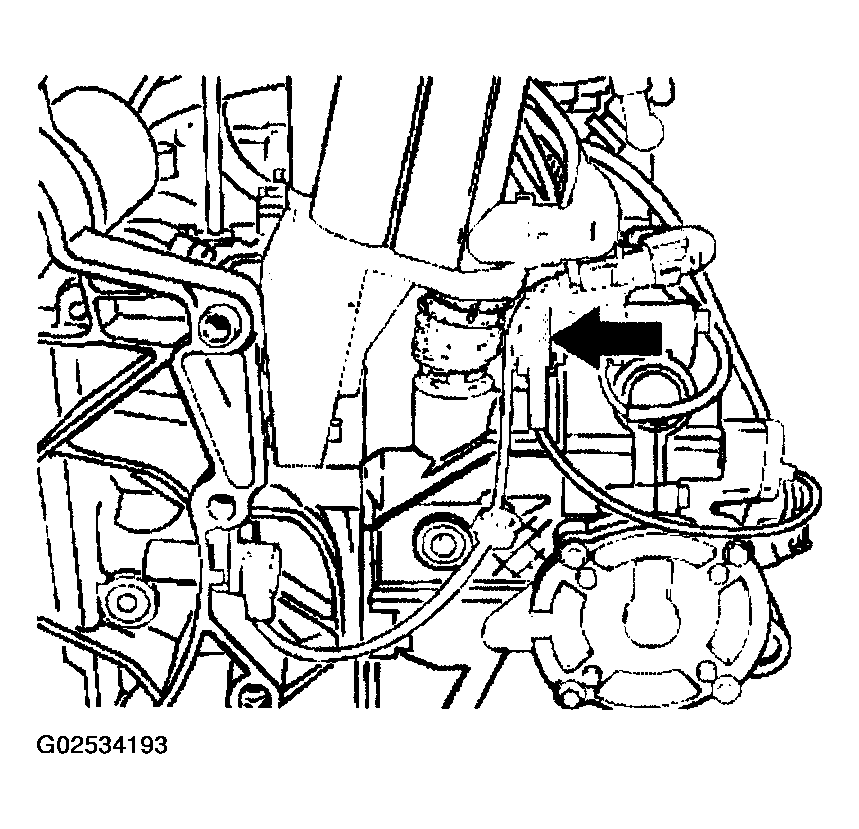

    Fig 1: Checking Triggering Wire
    G02534193Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Connect ohmmeter to pin V/1 and ground.

    Display: Infinity ohms

    If 0 - 5 ohms is displayed, check wiring for chafing and pinching damage.
