Diagnosis conditions
- Idle speed
- Reference mark recognized
- Engine speed between 600 rpm and 1200 rpm
- Engine temperature > 60 °C
- No fault in camshaft position sensors
- Reference mark OK
- No fault in camshaft adjustment
- No fault in engine temperature
NOTE:

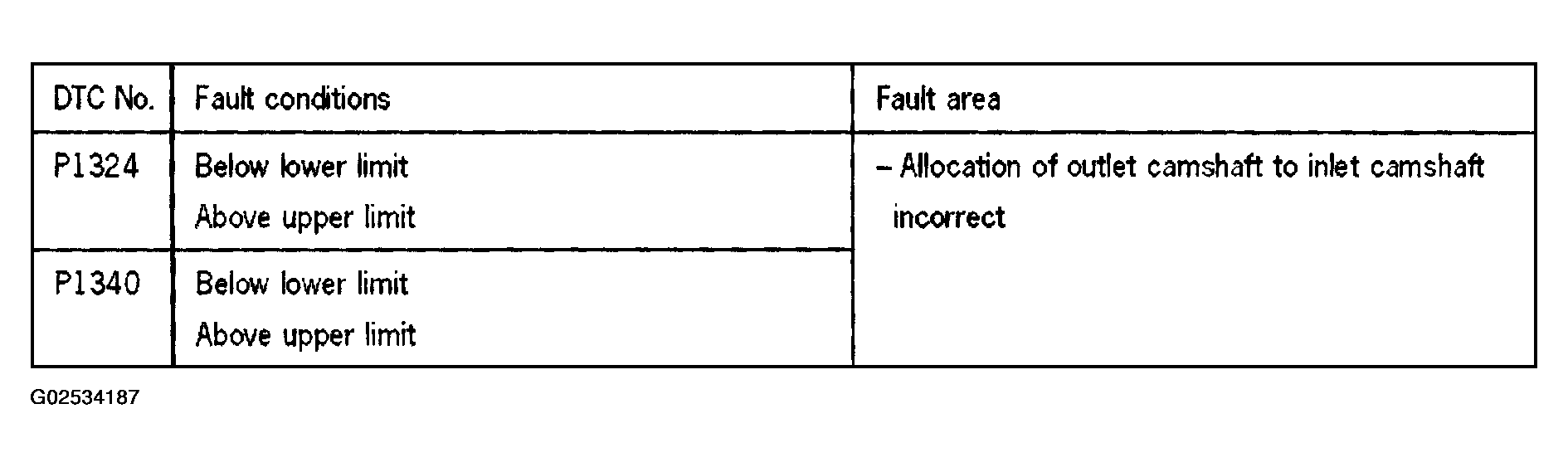

This fault can be stored only if the engine was disassembled and the allocation of the outlet camshaft to the inlet camshaft was incorrectly set.
To adjust the camshafts, please refer to Adjusting Timing in appropriate Engine article.
