Check fuel pressure

  1. Undo and remove the closure cap of the fuel collection pipe test connection (A/F 13 mm).
  2. Connect pressure gauge (special tool P 378a) to connecting line (special tool 9559) and connect to test connection.

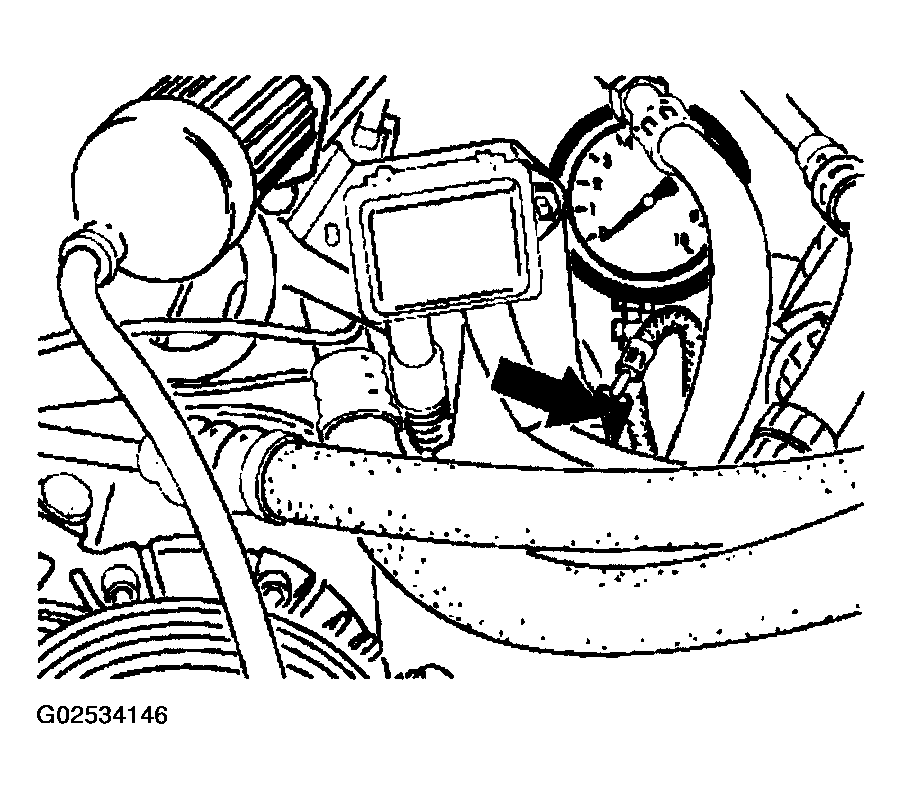

    Fig 1: Connecting Pressure Gauge Special Tool P 378a
    G02534146Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Actuate fuel pump, either
    • with Porsche System Tester 2

      The fuel pump can be actuated with the Porsche System Tester 2 or by jumpering the fuel pump relay.

      or

    • - via fuel pump relay without tester

      Disconnect the fuel pump relay from the central electrical system and jumper plug-in contacts 30 and 87 (identification 3 and 5 on central electrical system) with a fused shop-made cable. The fuel pump must now operate or deliver fuel.

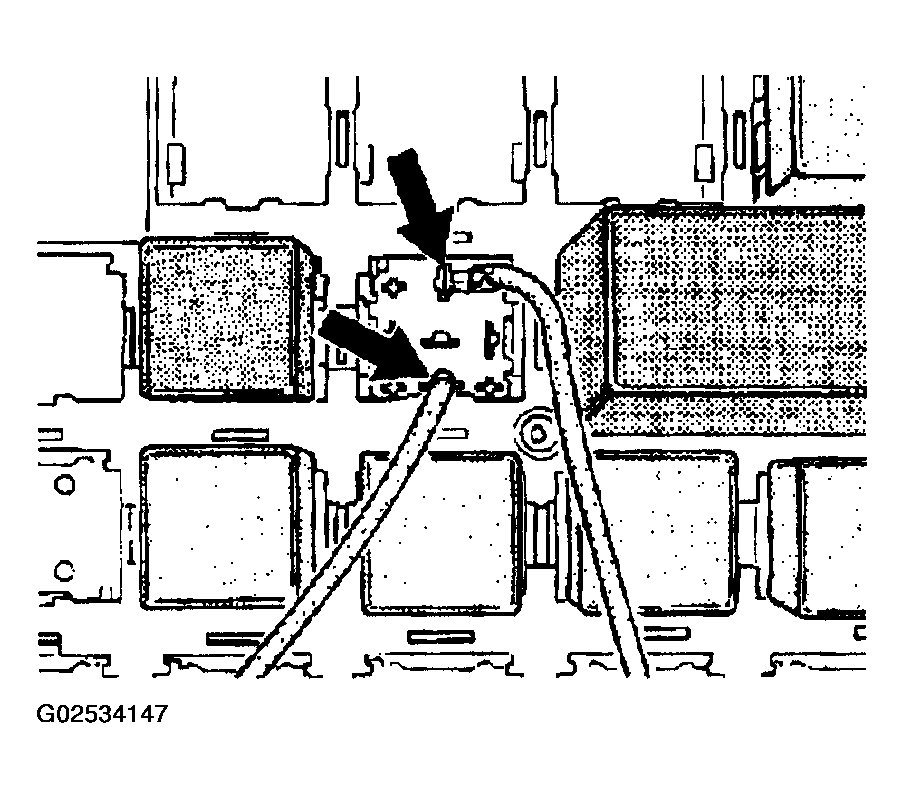

    Fig 2: Energizing Fuel Pump Relay
    G02534147Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Nominal test values

    Stationary engine 3.8 +/- 0.2 bar

    Engine idling 3.3 +/- 0.2 bar

    NOTE: The seal or sealing ring in the brass closure cap is not exchangeable. It must therefore be used only once.

    Tightening torque of new brass closure cap 2.5 +/- 0.5 N.m.
