Diagnosis Procedure: Notes

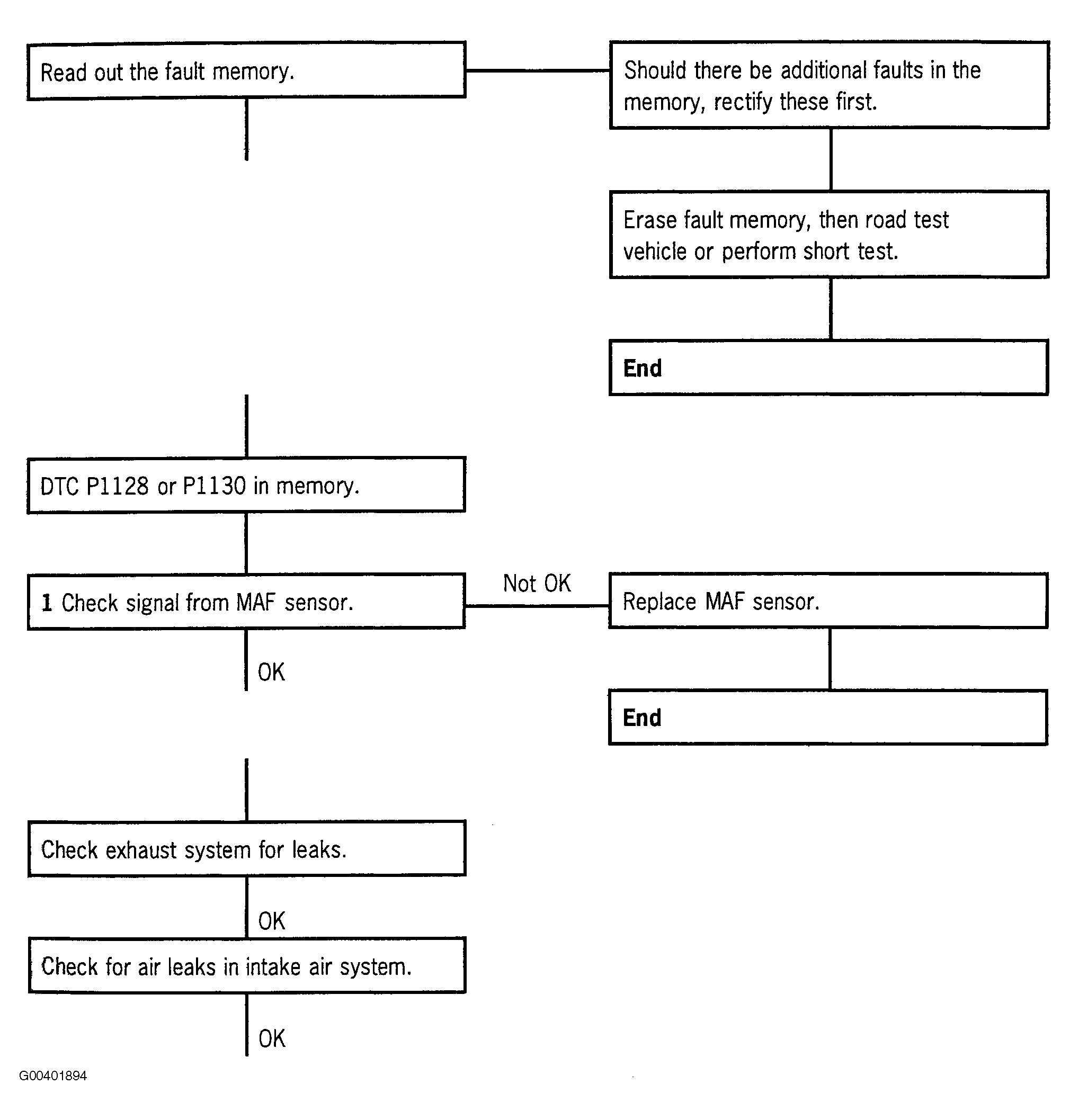

Fig 1: DTC P1128 & P1130 Diagnostic Procedure (Above Limit, 1 Of 2)
G00401894Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fig 2: DTC P1128 & P1130 Diagnostic Procedure (Above Limit, 2 Of 2)
G00401895Courtesy of PORSCHE OF NORTH AMERICA, INC.
