DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P1118: Oxygen Sensor Heating After TWC, Bank 1 - Signal Implausible
>>
4 Oxygen Sensor Heating After TWC, Bank 1 - Signal Implausible
>>
Diagnosis Conditions
Diagnosis Conditions

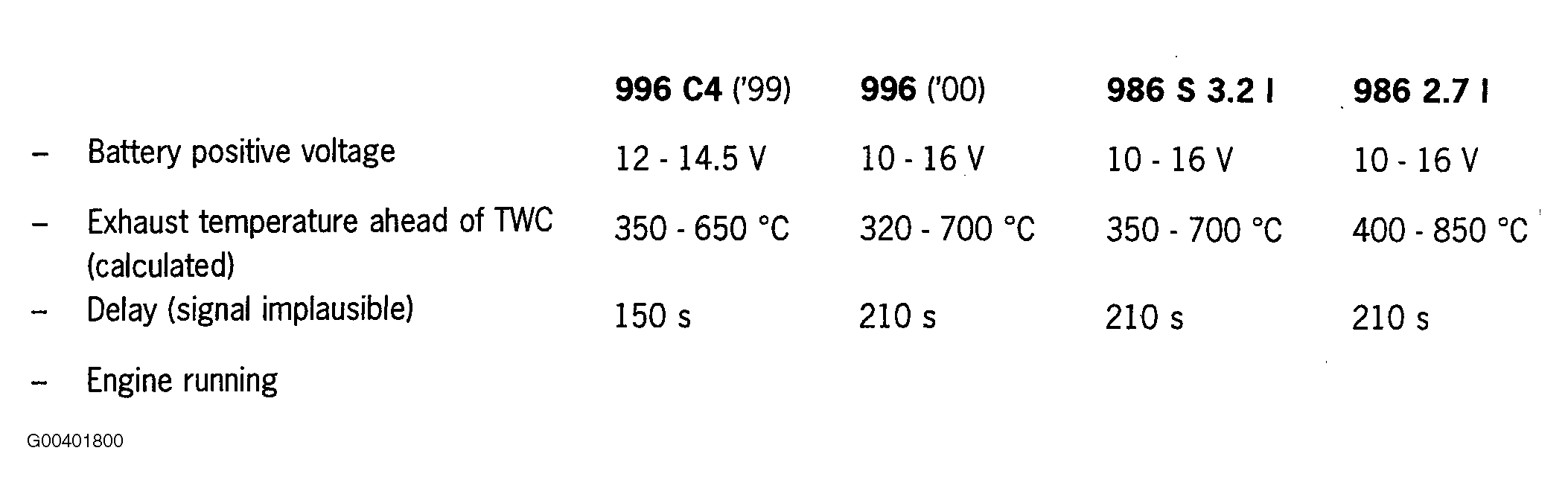

Fig 1: DTC P1118 Diagnosis Conditions
Courtesy of PORSCHE OF NORTH AMERICA, INC.

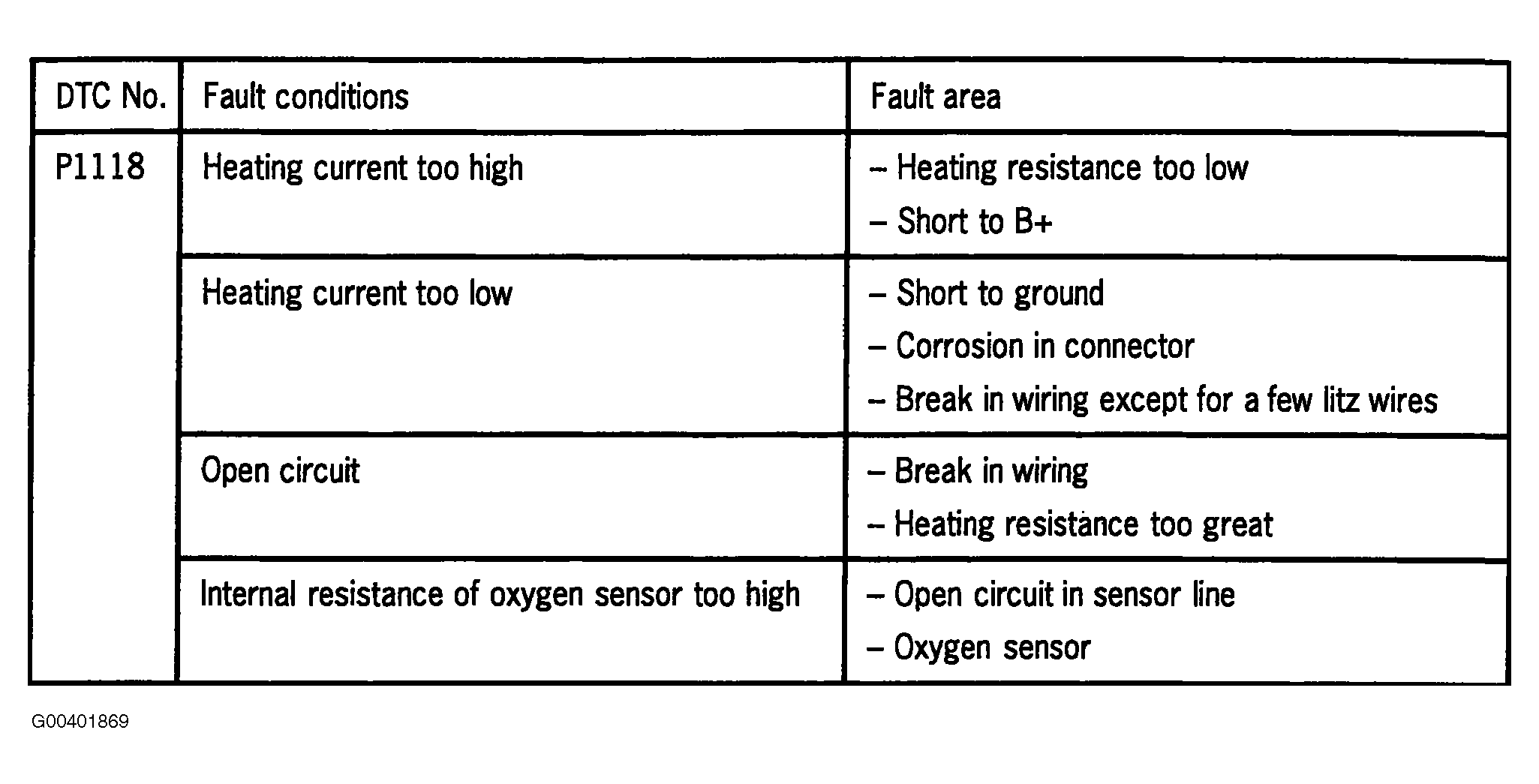

Fig 2: DTC P1118 Fault Conditions
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
