DTC P1115: Oxygen Sensor Heating Ahead Of TWC, Bank 1 - Signal Implausible: Wiring Diagram

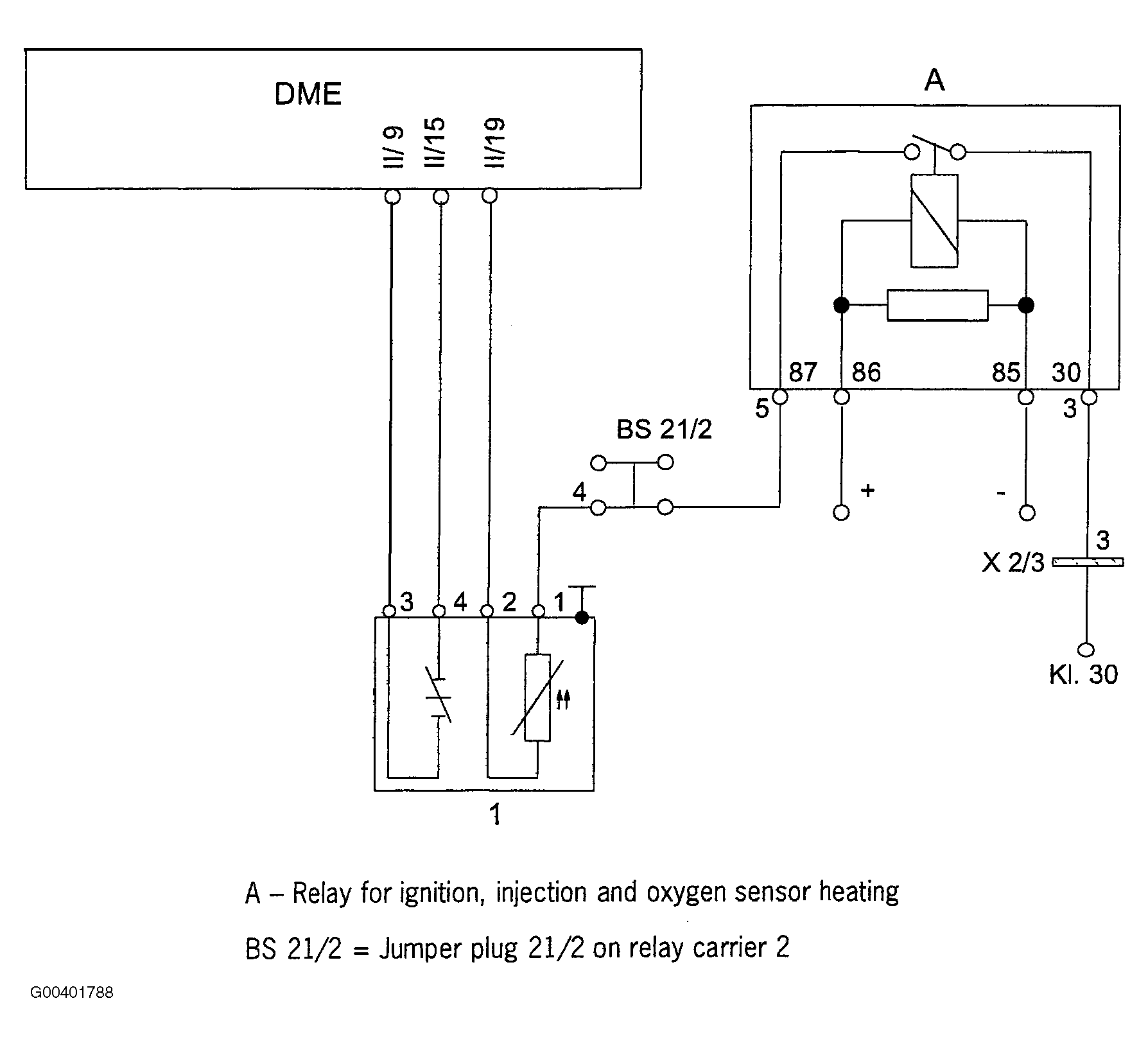

Fig 1: DTC P1115 Wiring Diagram

G00401788

Courtesy of PORSCHE OF NORTH AMERICA, INC.
