DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P1115: Oxygen Sensor Heating Ahead Of TWC, Bank 1 - Signal Implausible
>>
13 Oxygen Sensor Heating Ahead Of TWC, Bank 1 - Signal Implausible
>>
Diagnosis Conditions
Diagnosis Conditions

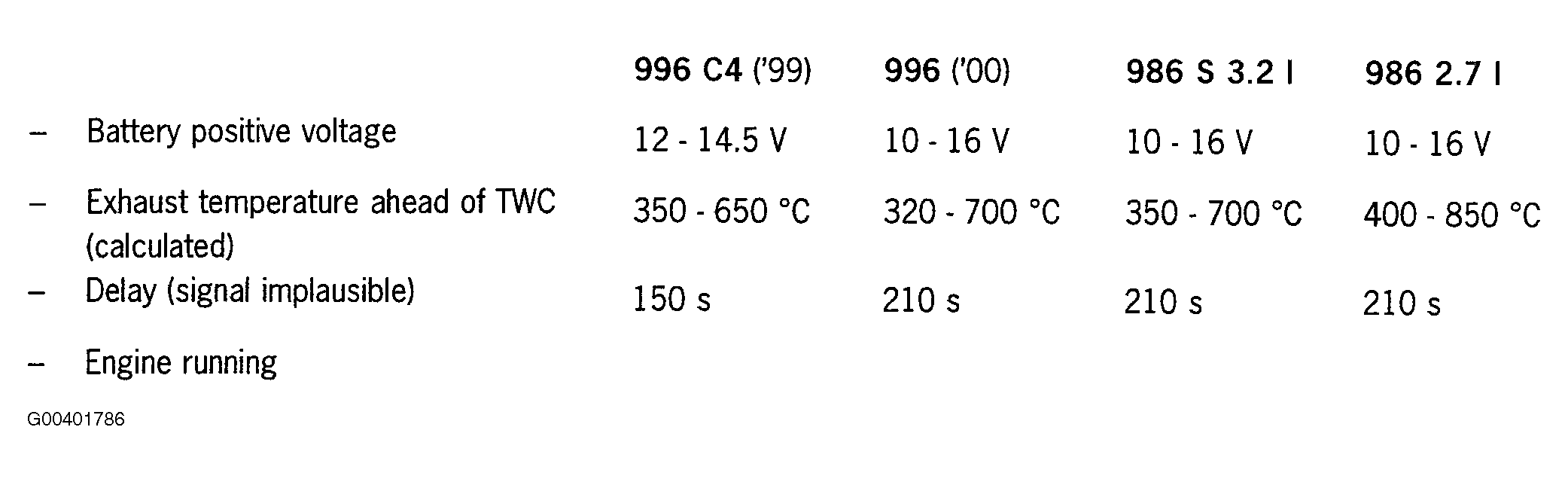

Fig 1: DTC P1115 Diagnosis Conditions
Courtesy of PORSCHE OF NORTH AMERICA, INC.

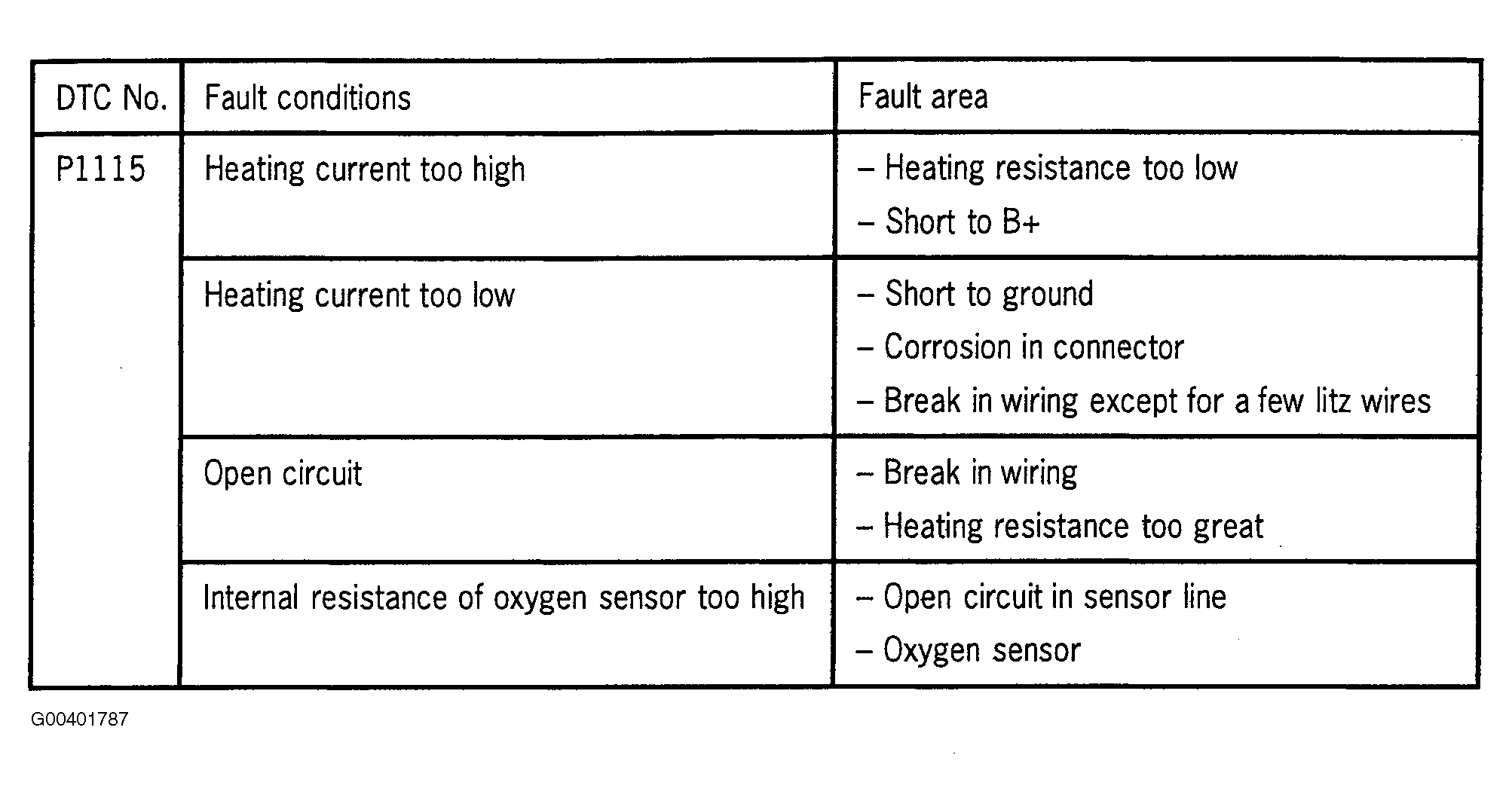

Fig 2: DTC P1115 Fault Conditions
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
