Diagnosis Conditions

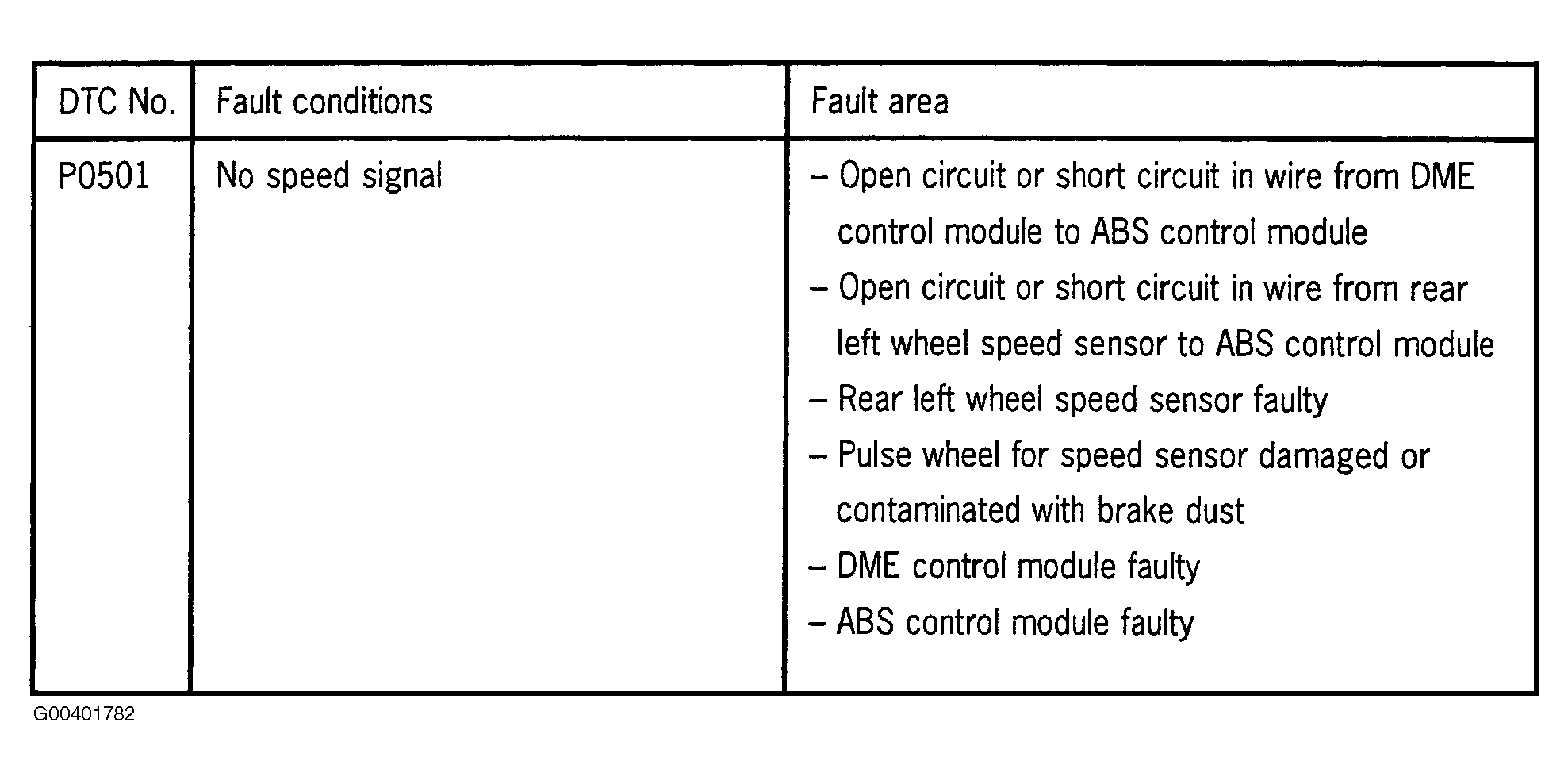

Fig 1: DTC P0501 Fault Conditions
G00401782Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE: The signal from the rear left wheel speed sensor is used.
