Check Ventilation Lines At EVAP Canister

  1. Remove front right-hand wheel housing liner.
  2. Check whether ventilation lines are attached to the EVAP canister.

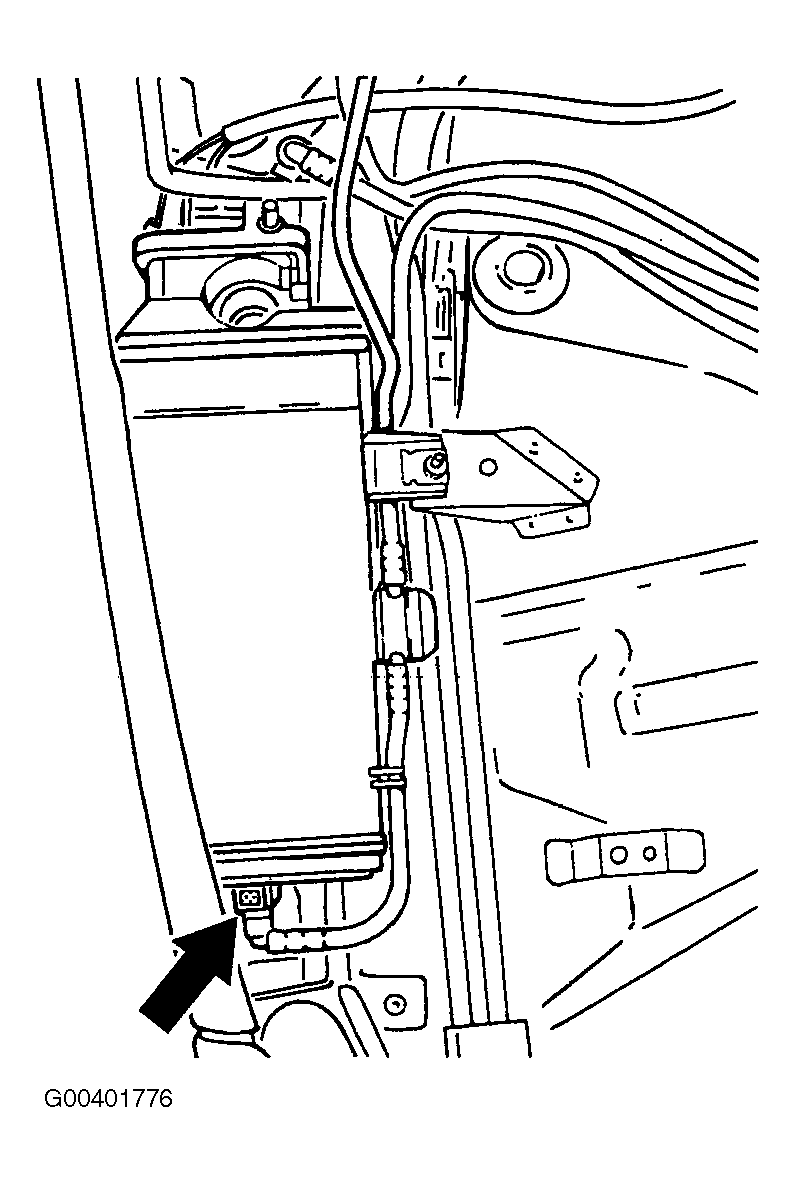

    3. Fig 1: Checking Ventilation Lines At EVAP Canister
    G00401776Courtesy of PORSCHE OF NORTH AMERICA, INC.
