DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P0445: EVAP Canister Purge Valve - Shirt To B+/Short To Ground
>>
Wiring Diagram
DTC P0445: EVAP Canister Purge Valve - Shirt To B+/Short To Ground: Wiring Diagram

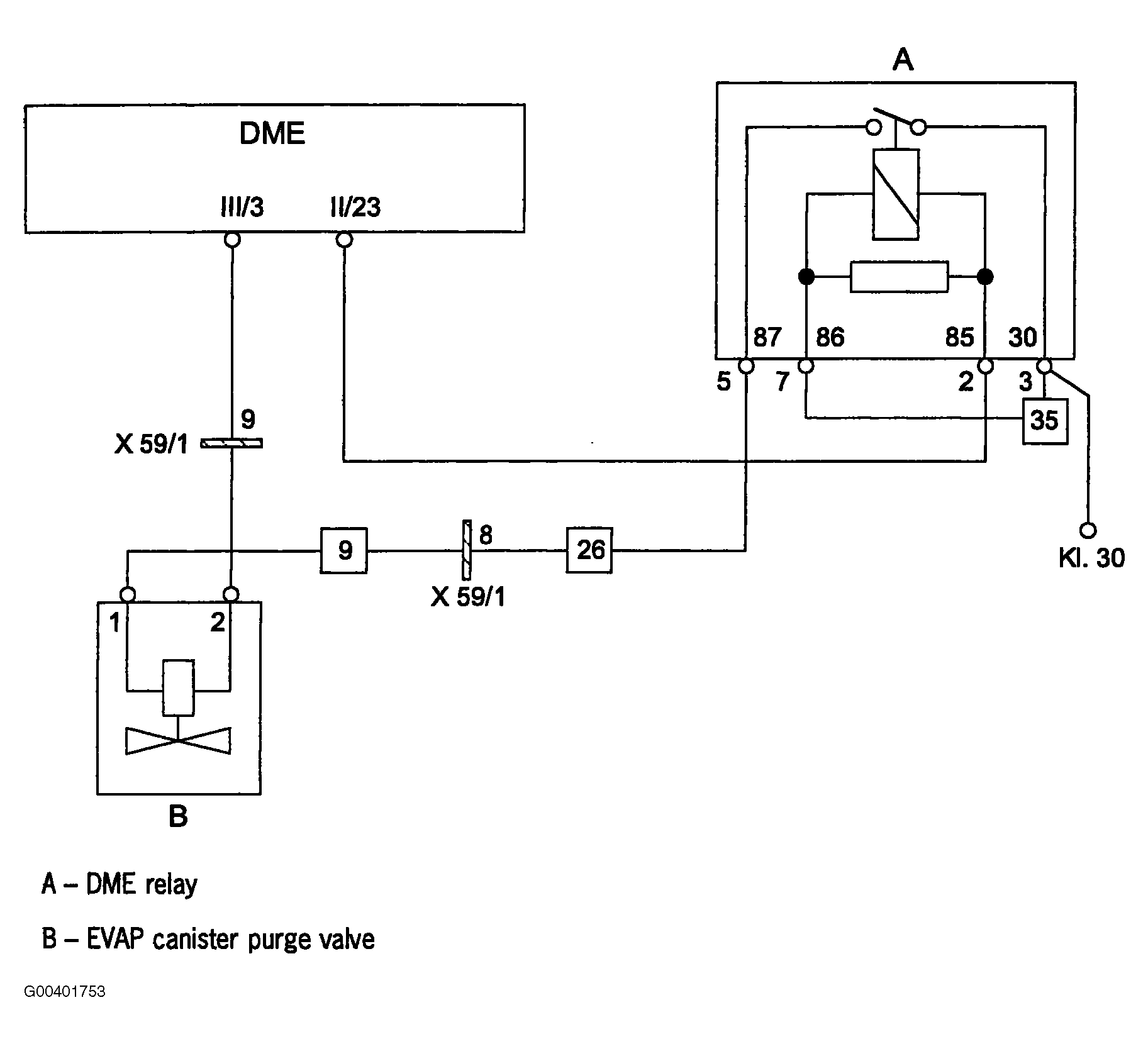

Fig 1: DTC P0444 & P0445 Wiring Diagram
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
