Check Installation Position Of EVAP Canister Purge Valve

Flow through the EVAP canister purge valve is possible in one direction only. The flow direction is indicated by an arrow on the EVAP canister purge valve. The arrow must point towards the intake manifold.

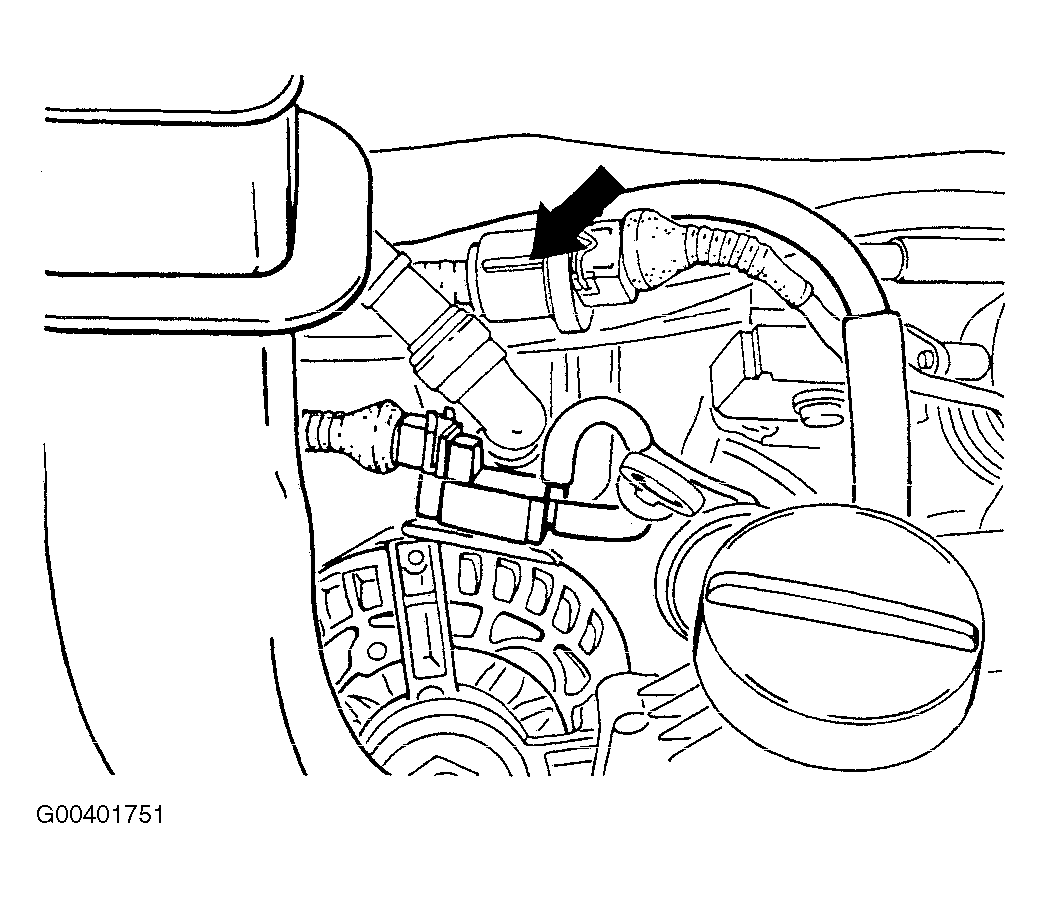

Fig 1: DTC P0440 Checking Position Of EVAP Canister
G00401751Courtesy of PORSCHE OF NORTH AMERICA, INC.
