DTC P0414: Electric Change-over Valve - Above Limit: Wiring Diagram

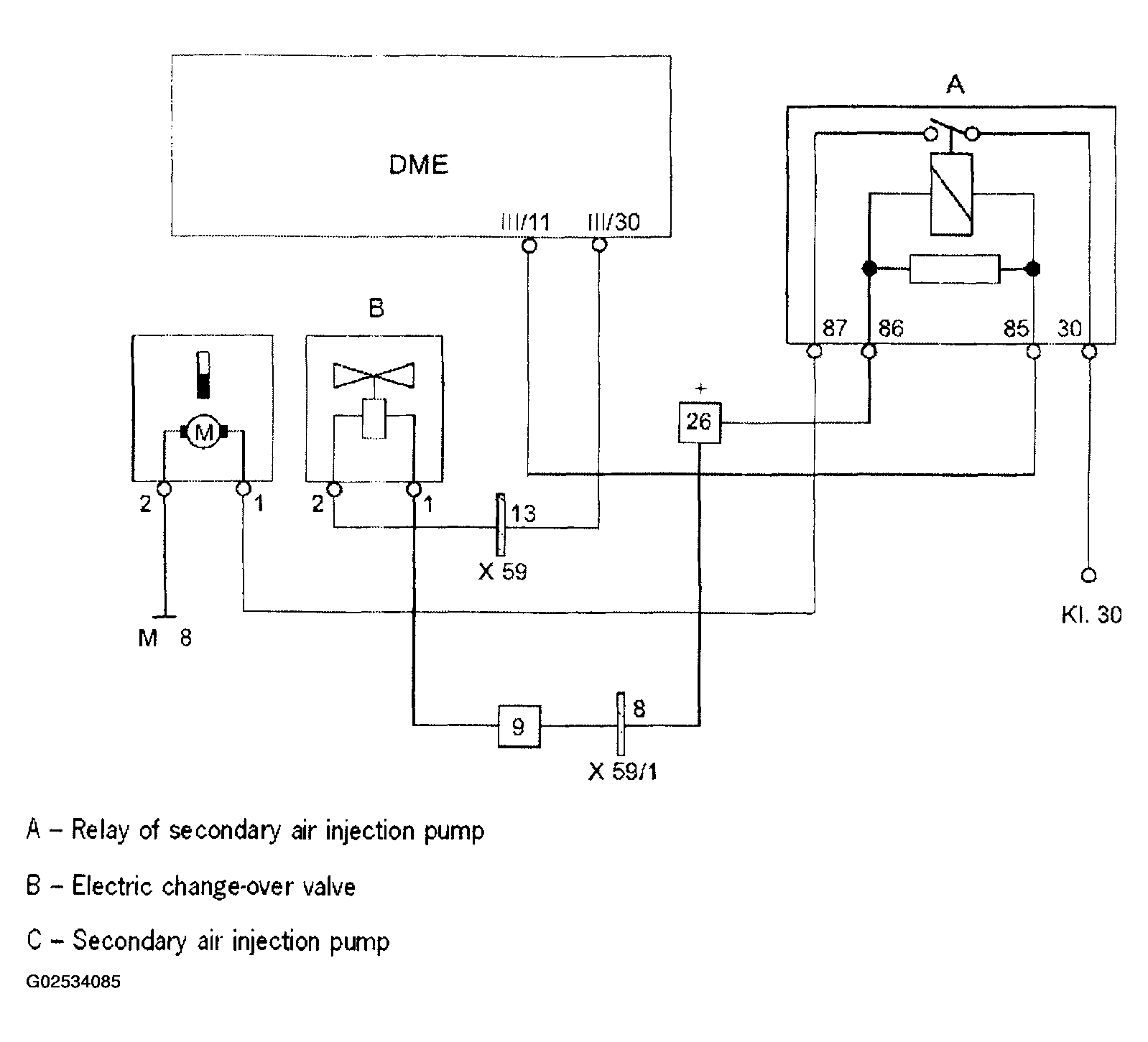

Fig 1: DTC P0413 & P0414 Wiring Diagram

G02534085

Courtesy of PORSCHE OF NORTH AMERICA, INC.
