DTC P0306: Misfiring, Cylinder 6: Wiring Diagram

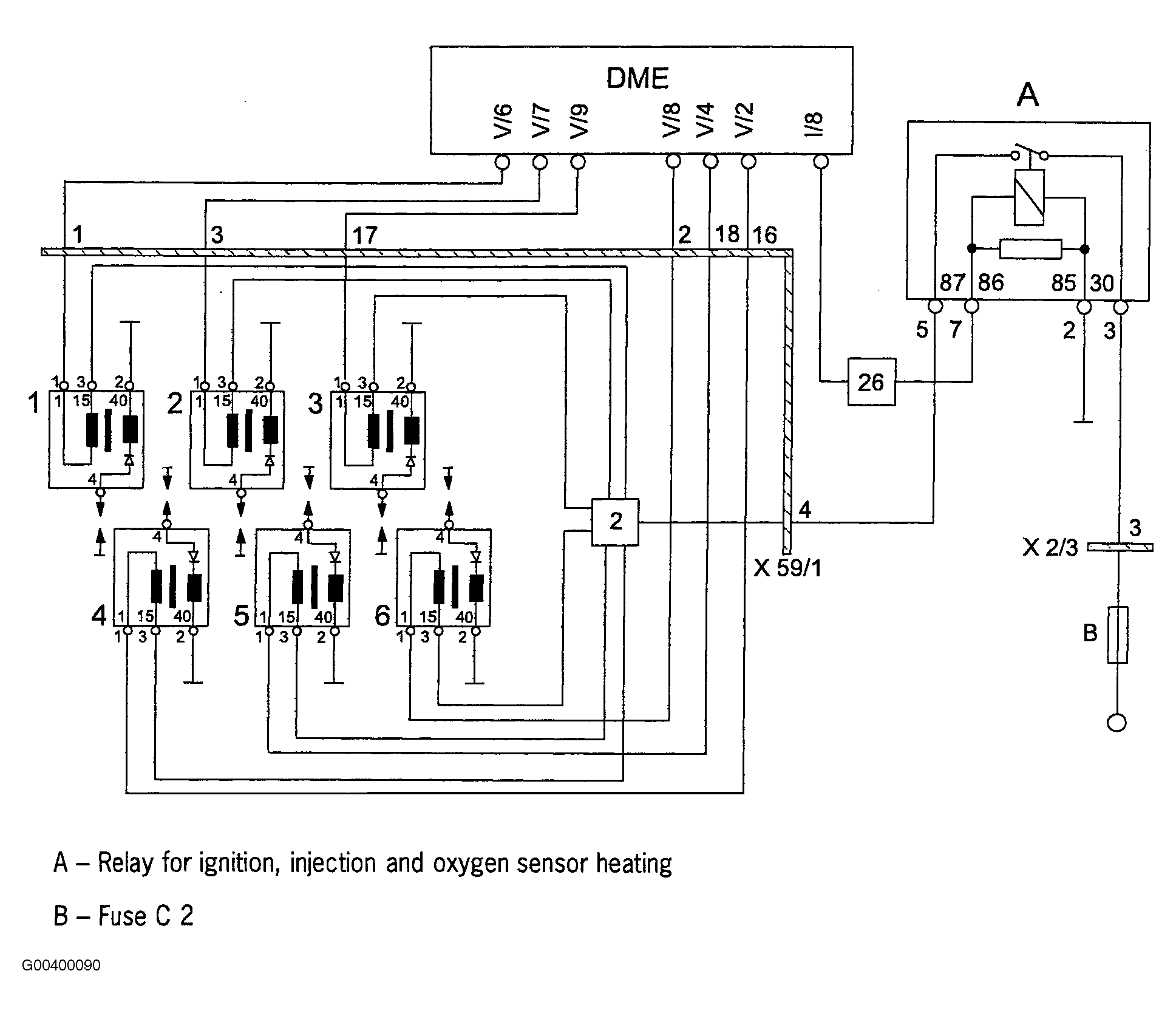

Fig 1: DTC P0300-P0306 Wiring Diagram

G00400090

Courtesy of PORSCHE OF NORTH AMERICA, INC.
