DTC P0158: Oxygen Sensor After TWC, Bank 2 - Above Limit: Wiring Diagram

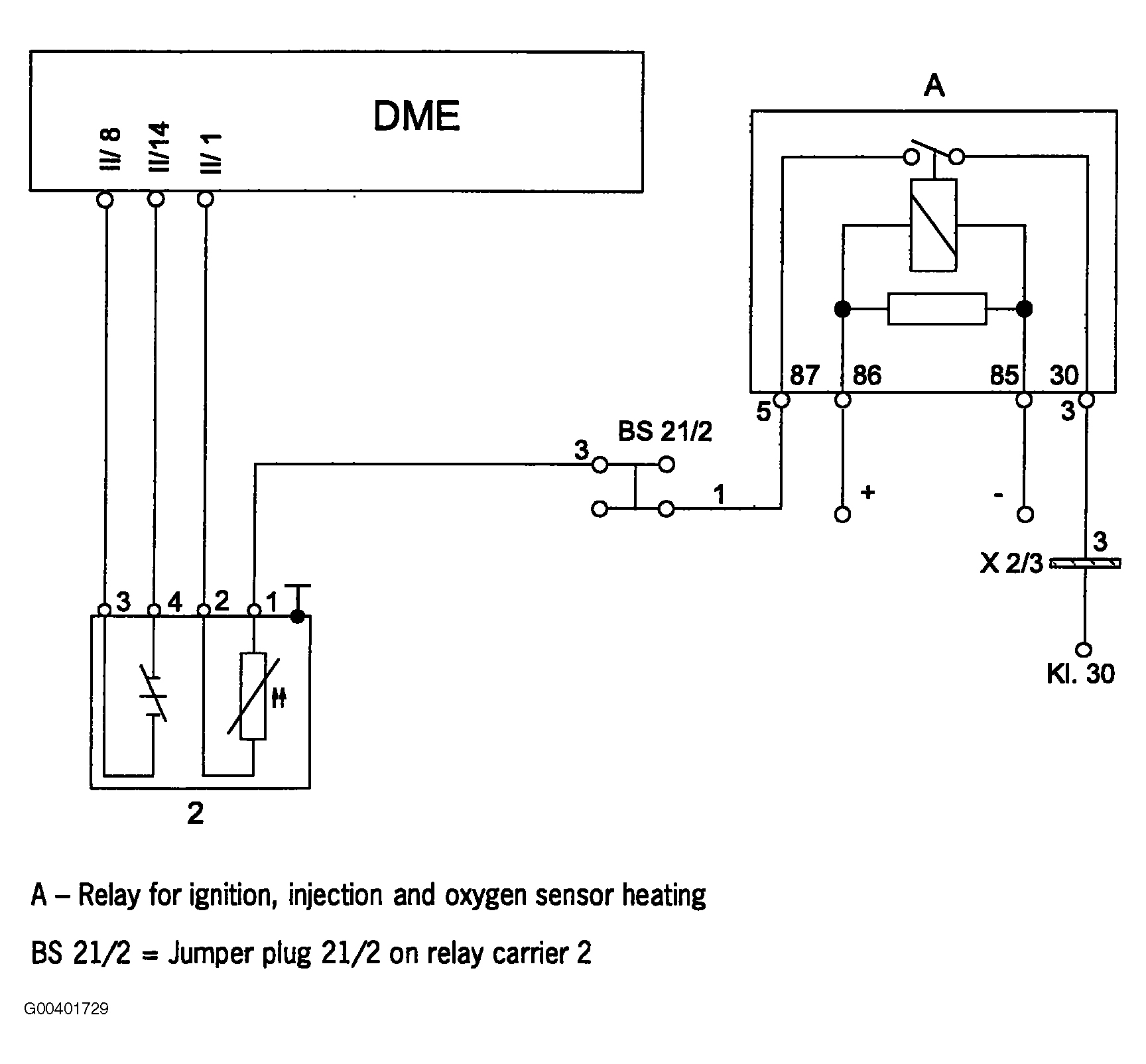

Fig 1: DTC P0158 Wiring Diagram

G00401729

Courtesy of PORSCHE OF NORTH AMERICA, INC.
