Diagnosis Conditions

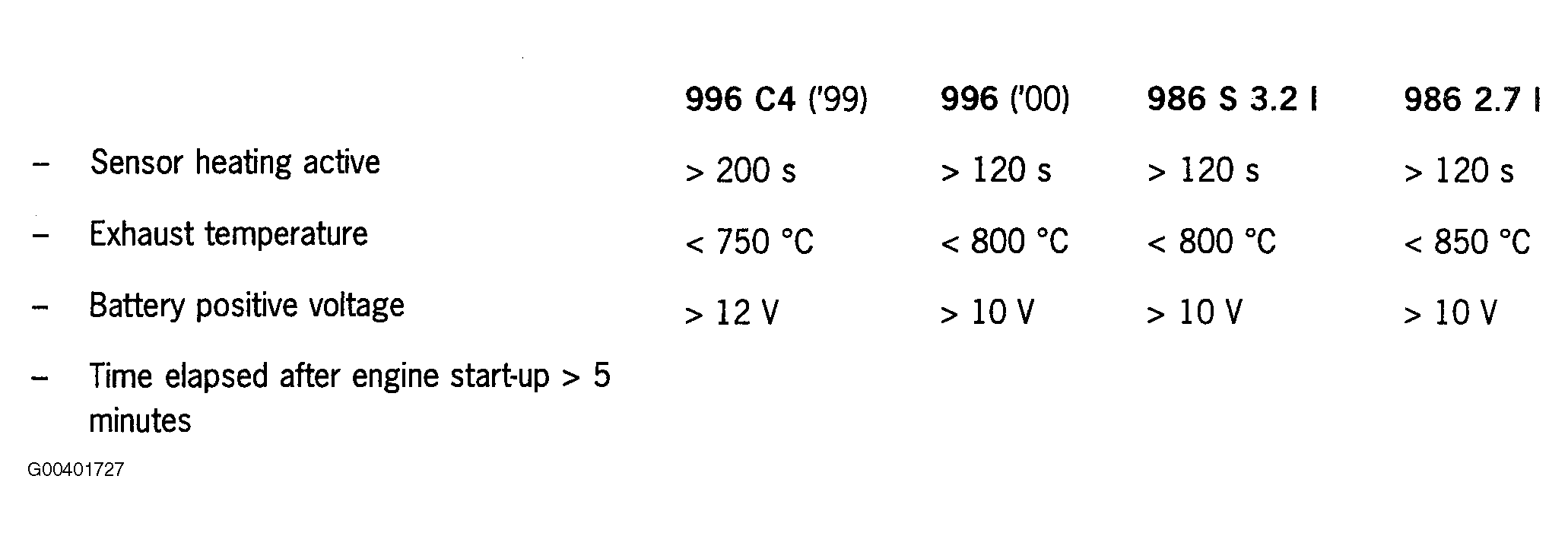

Fig 1: DTC P0158 Diagnosis Conditions

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The DME control module stores DTC P0158 when the sensor voltage is over 1.5V for more than 5 seconds during active oxygen sensing after the TWC.

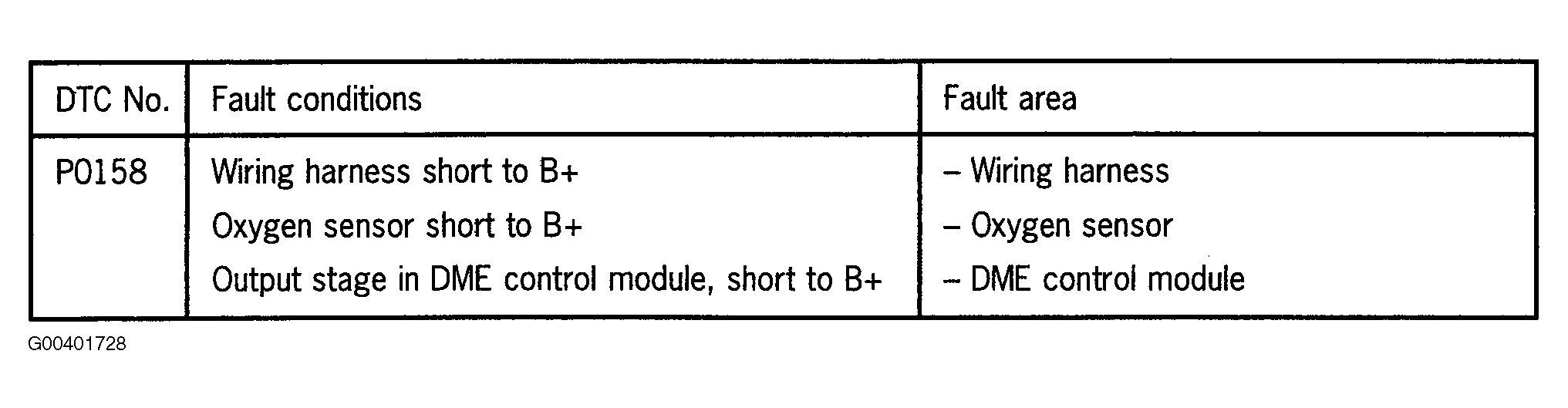

Fig 2: DTC P0158 Fault Conditions

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Diagnosis can be performed with the Porsche System Tester 2 in the Short Test menu.
