DTC P0154: Oxygen Sensor Ahead Of TWC, Bank 2 - Interruption Of Signal: Wiring Diagram

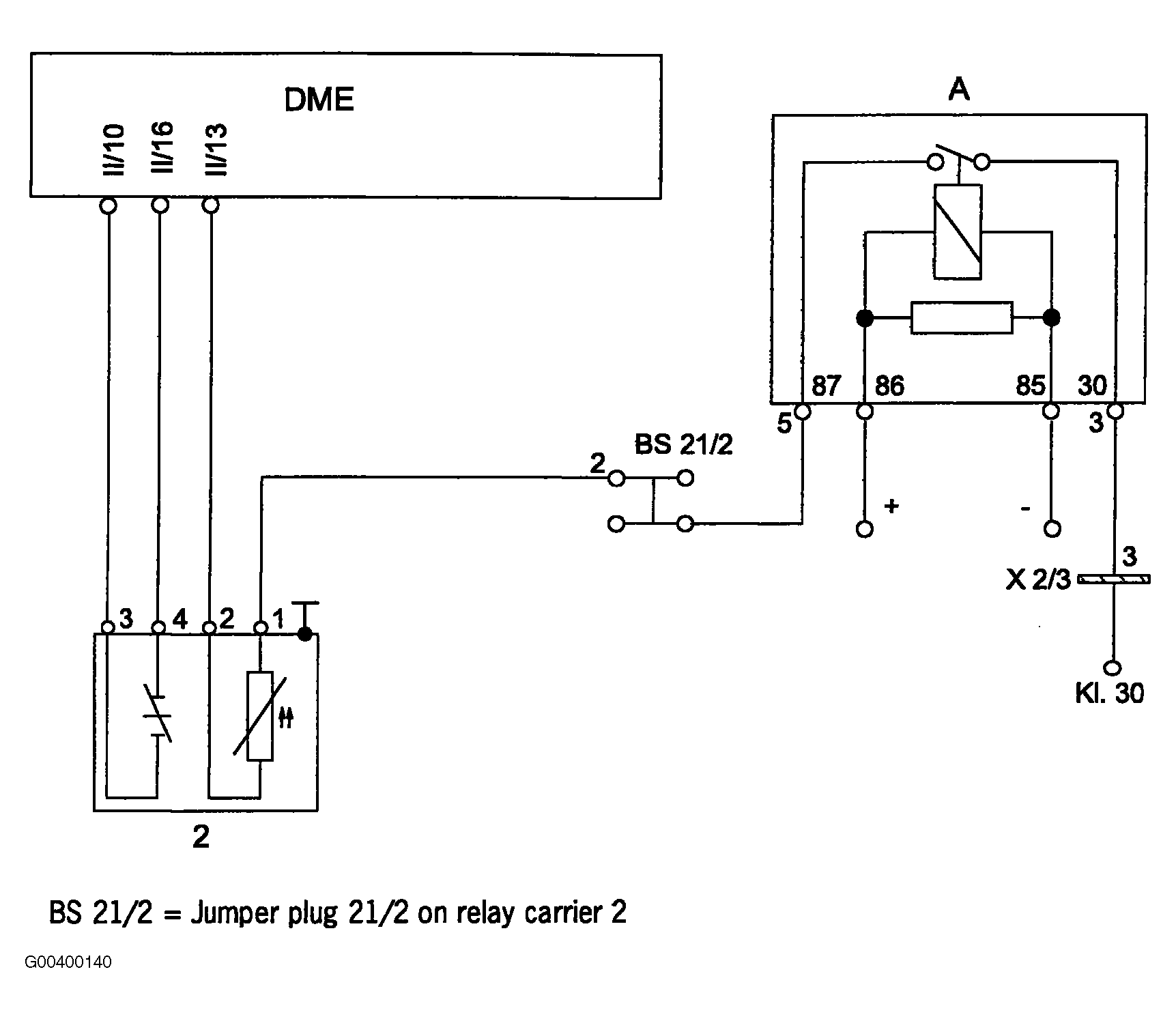

Fig 1: DTC P0154 Wiring Diagram

G00400140

Courtesy of PORSCHE OF NORTH AMERICA, INC.
