Diagnosis Conditions

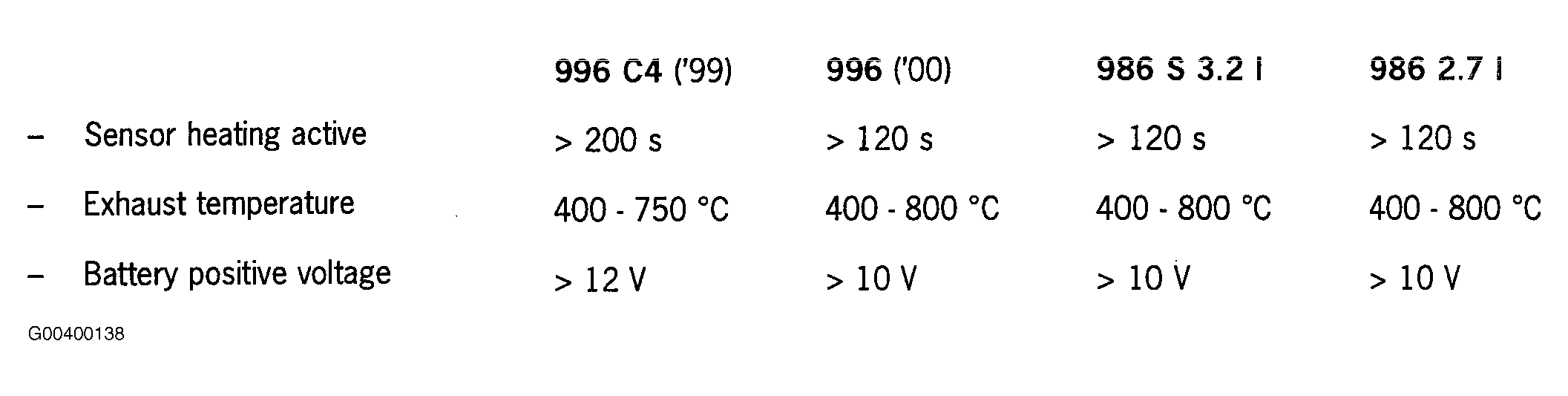

Fig 1: DTC P0154 Diagnosis Conditions
G00400138Courtesy of PORSCHE OF NORTH AMERICA, INC.

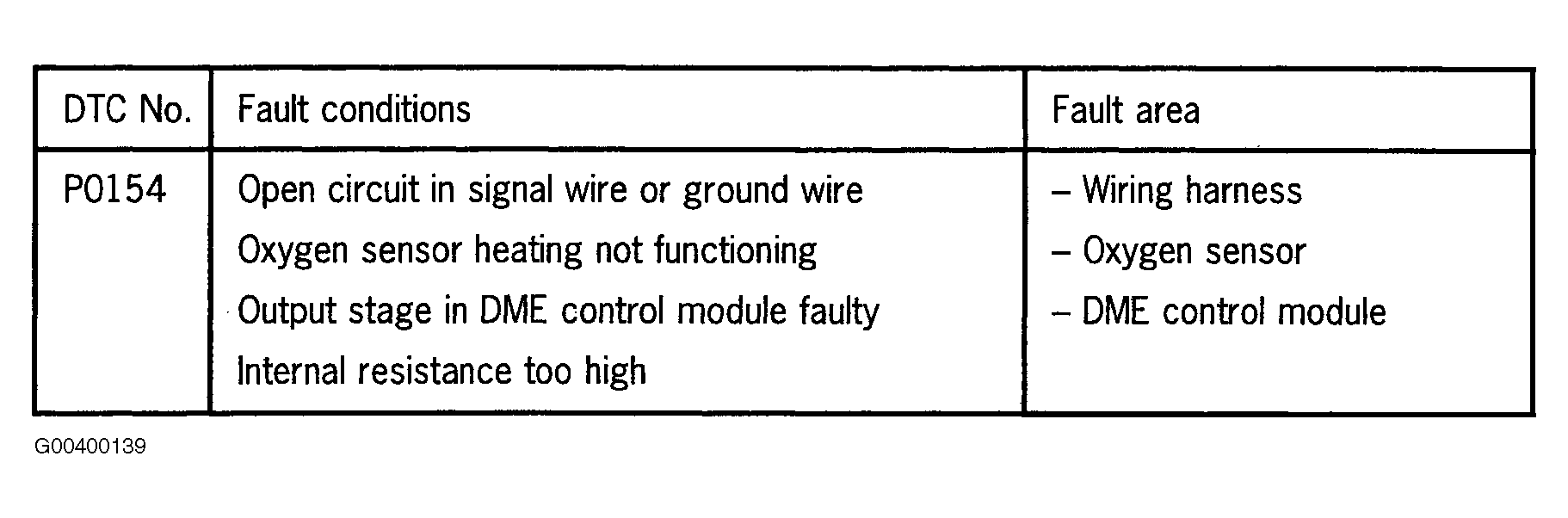

Fig 2: DTC P0154 Fault Conditions
G00400139Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE: The fault is stored after 2 minutes.
