DTC P0152: Oxygen Sensor Ahead Of TWC, Bank 2 - Above Limit: Wiring Diagram

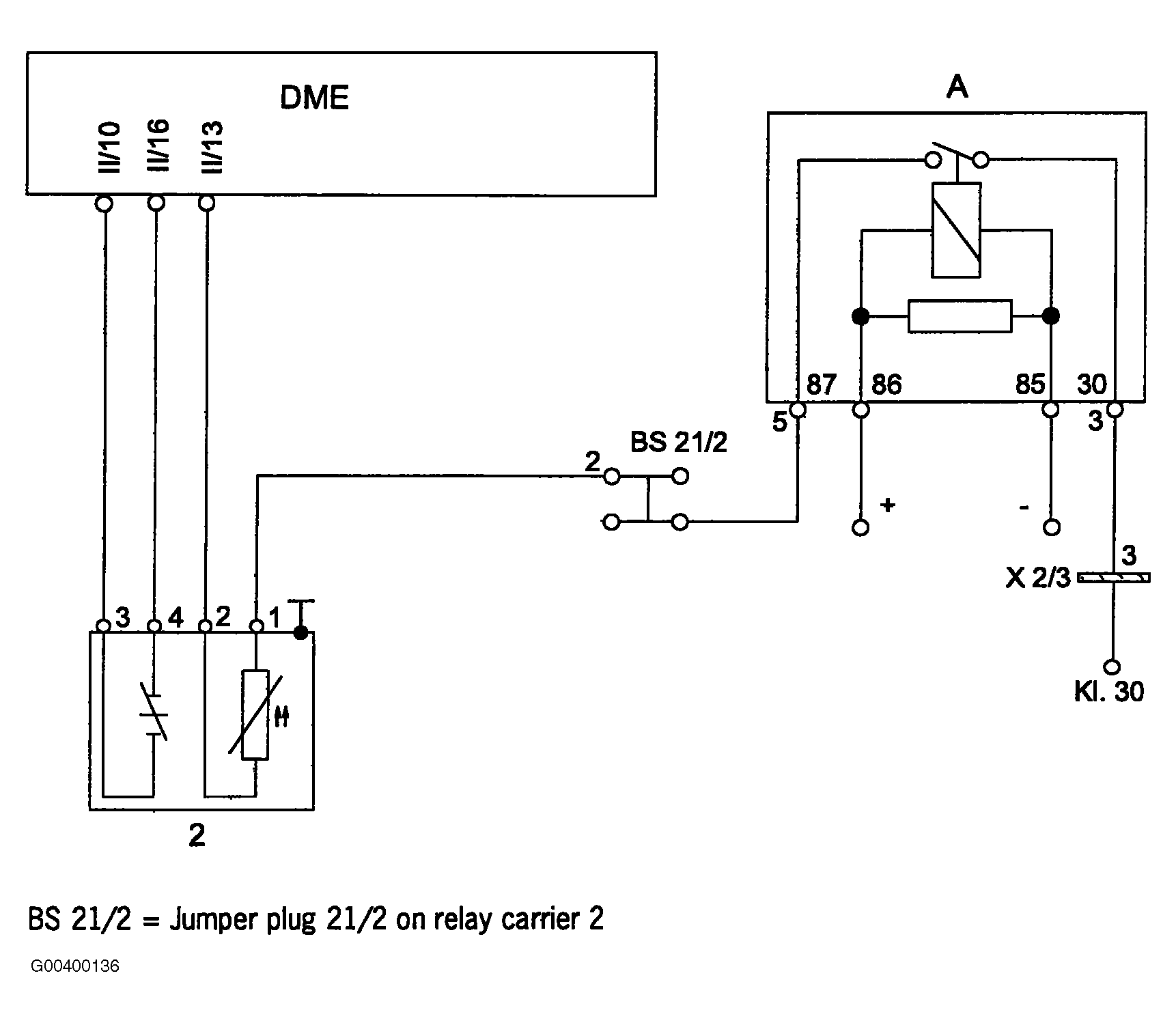

Fig 1: DTC P0152 Wiring Diagram

G00400136

Courtesy of PORSCHE OF NORTH AMERICA, INC.
