Diagnosis Conditions

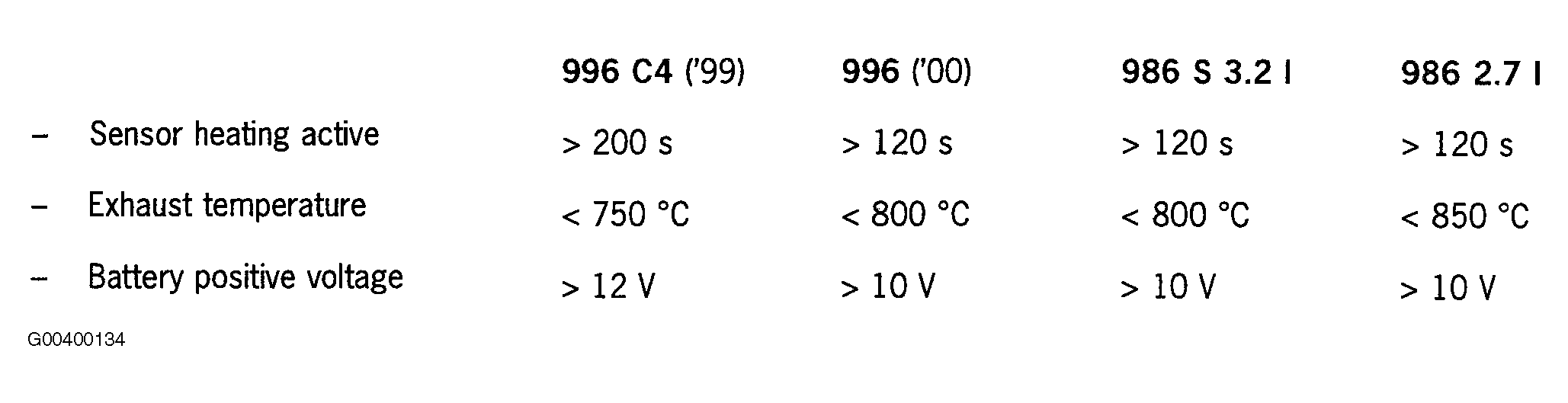

Fig 1: DTC P0152 Diagnosis Conditions

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Diagnostic Trouble Code P0152 is stored by the DME control module when the sensor voltage is continuously above 1.5 V for more than 5 seconds.

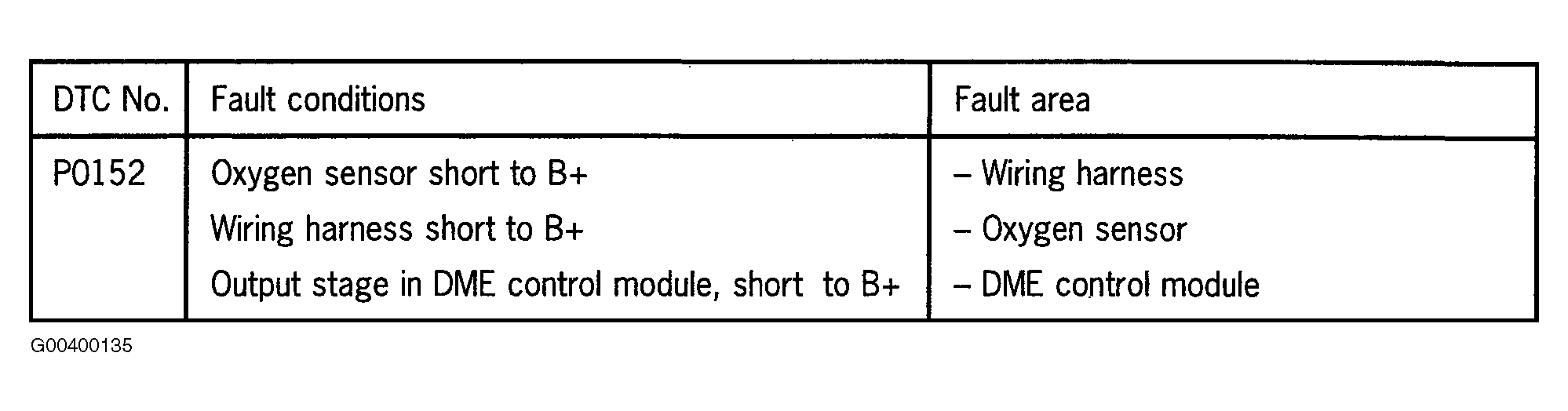

Fig 2: DTC P0152 Fault Conditions

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: The fault is stored after 2 minutes.
