DTC P0138: Oxygen Sensor After TWC, Bank 1 - Above Limit: Wiring Diagram

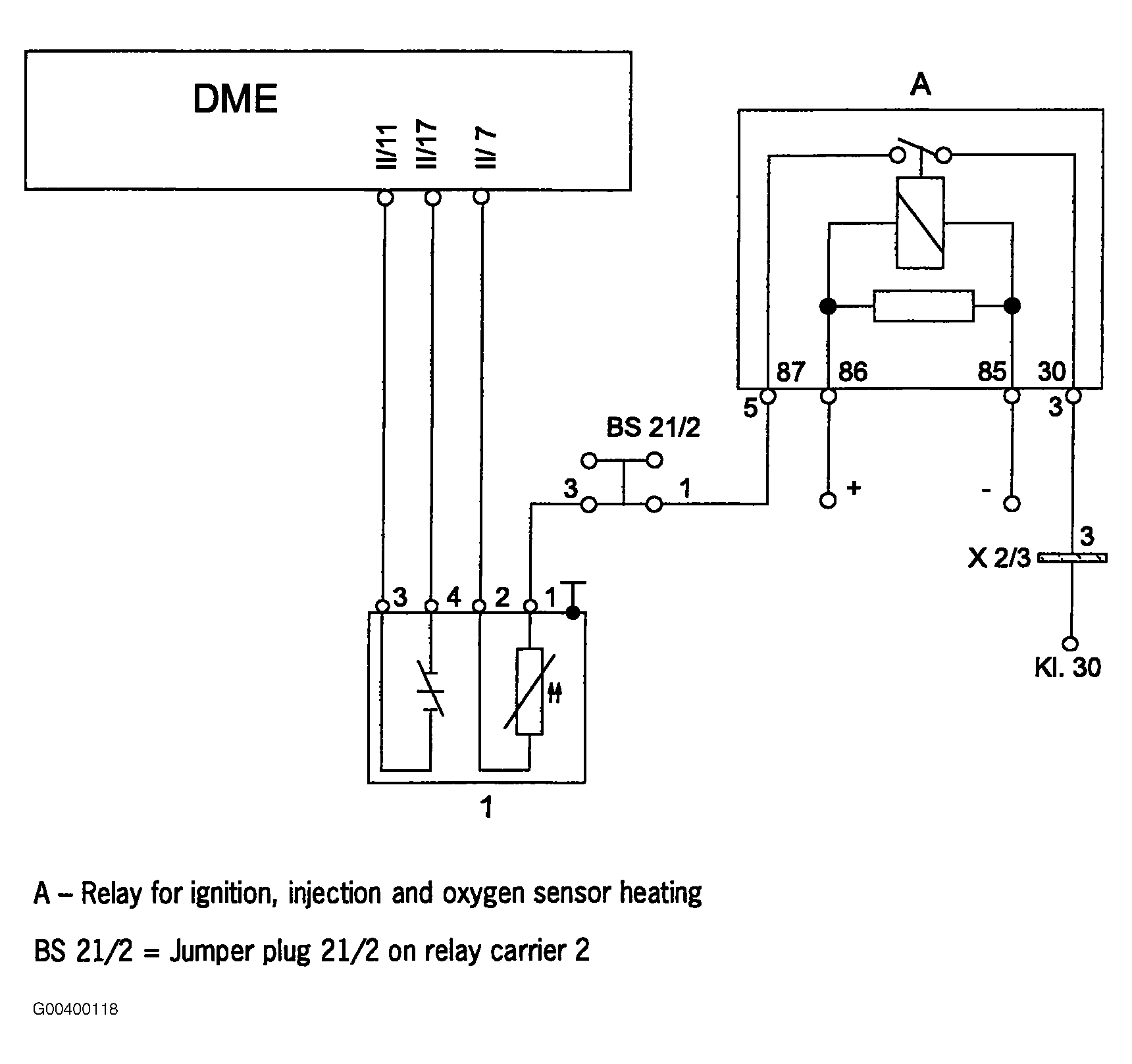

Fig 1: DTC P0138 Wiring Diagram

G00400118

Courtesy of PORSCHE OF NORTH AMERICA, INC.
