DTC P0134: Oxygen Sensor Ahead of TWC, Bank 1 - Interruption Of Signal: Wiring Diagram

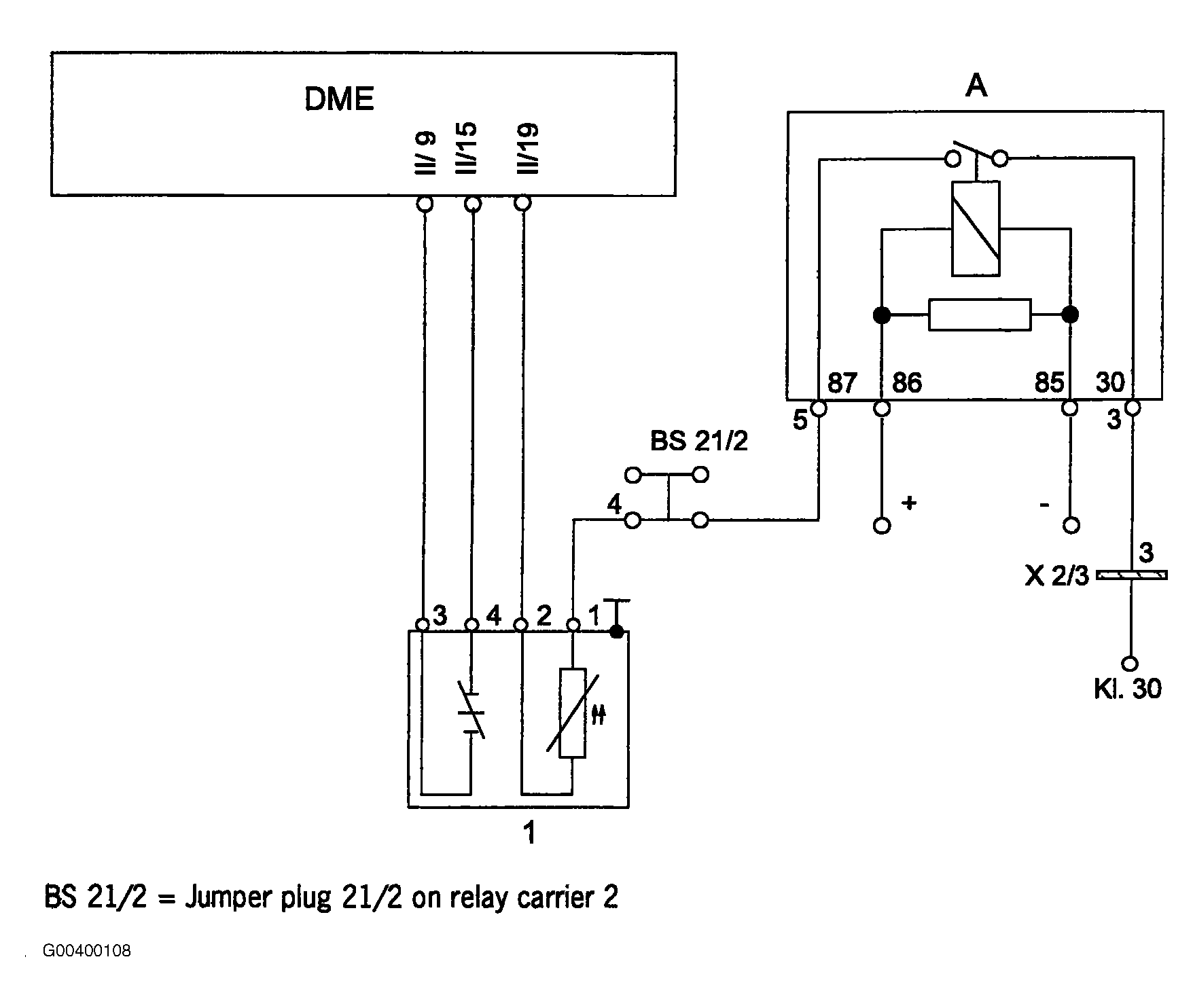

Fig 1: DTC P0134 Wiring Diagram

G00400108

Courtesy of PORSCHE OF NORTH AMERICA, INC.
