DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P0134: Oxygen Sensor Ahead of TWC, Bank 1 - Interruption Of Signal
>>
10 Oxygen Sensor Ahead of TWC, Bank 1 - Interruption Of Signal
>>
Diagnosis Conditions
Diagnosis Conditions

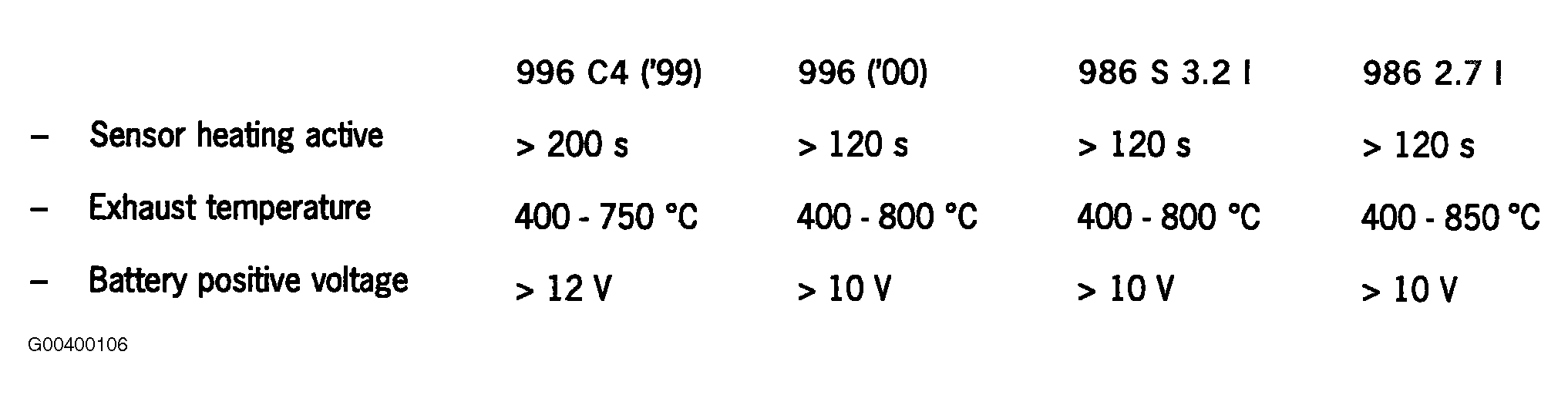

Fig 1: DTC P0134 Diagnosis Conditions
Courtesy of PORSCHE OF NORTH AMERICA, INC.

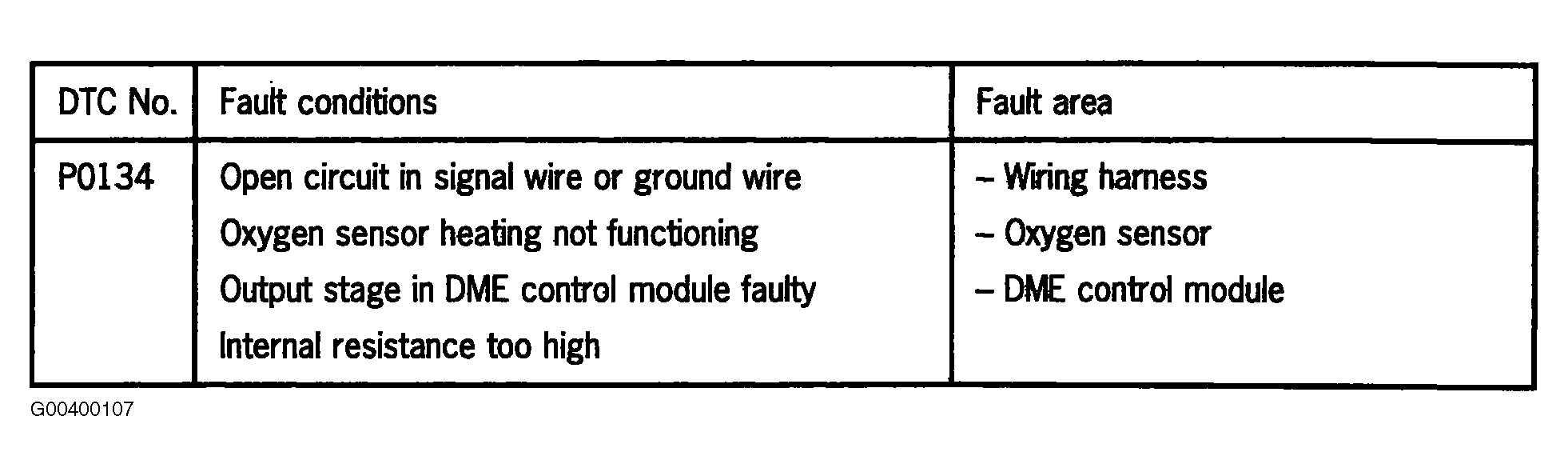

Fig 2: DTC P0134 Fault Conditions
Courtesy of PORSCHE OF NORTH AMERICA, INC.
