DTC P0132: Oxygen Sensor Ahead of TWC, Bank 1 -Above Limit: Wiring Diagram

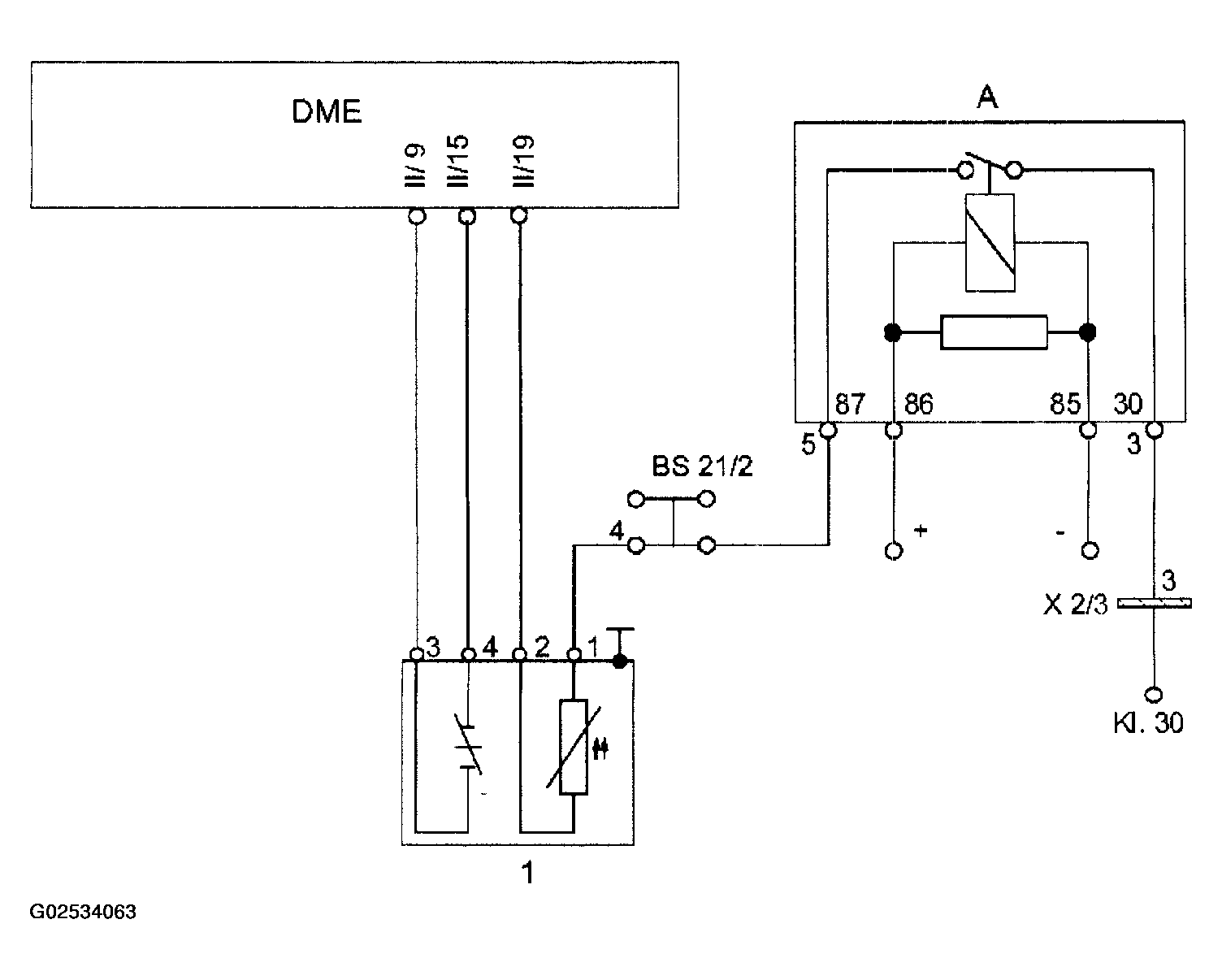

Fig 1: DTC P0132 Wiring Diagram

G02534063

Courtesy of PORSCHE OF NORTH AMERICA, INC.

BS 21/2 = Jumper plug 21/2 on relay carrier 2
