Home >> Porsche >> 2000 >> Boxster Base, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Cruise Control Systems >> DME 7.2 - 911 CARRERA & BOXSTER >> DTC P0132: Oxygen Sensor Ahead of TWC, Bank 1 -Above Limit >> 10 Oxygen Sensor Ahead of TWC, Bank 1 -Above Limit >> Diagnosis conditions

Diagnosis conditions

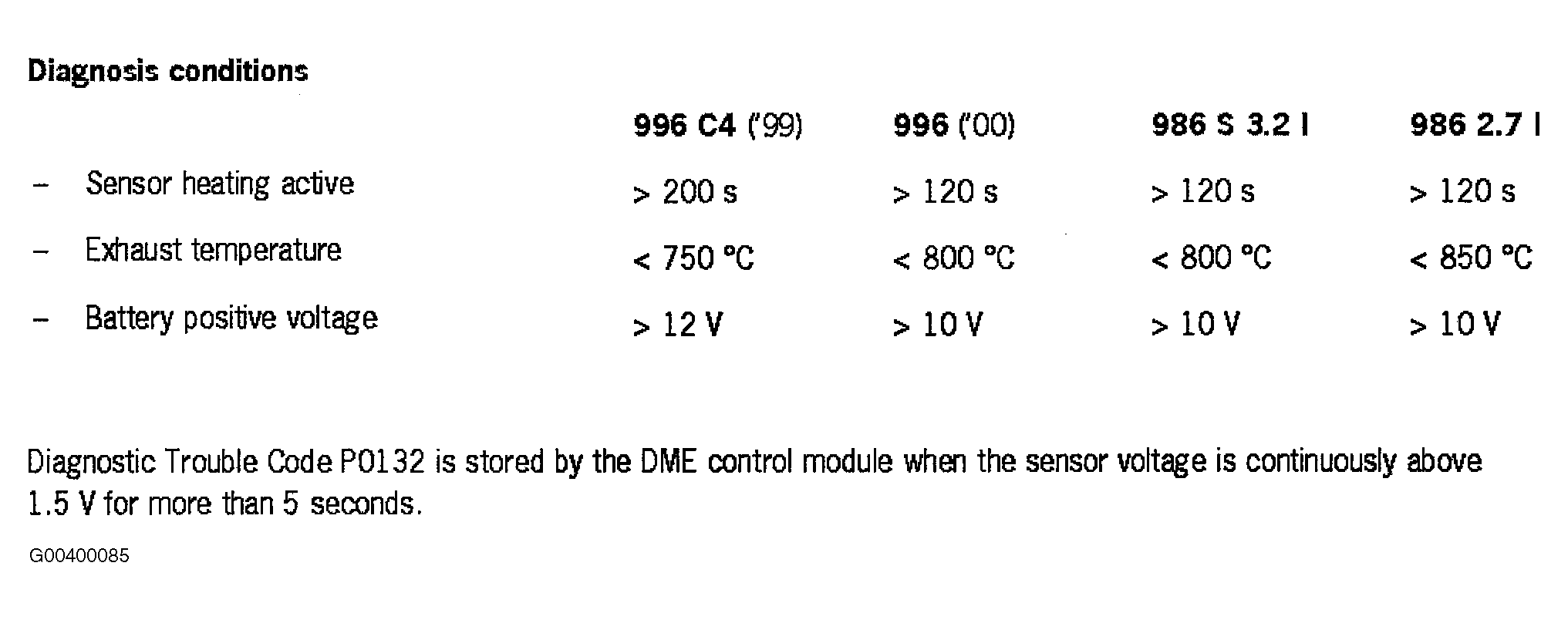

Fig 1: DTC P0132 Diagnosis Conditions
G00400085Courtesy of PORSCHE OF NORTH AMERICA, INC.

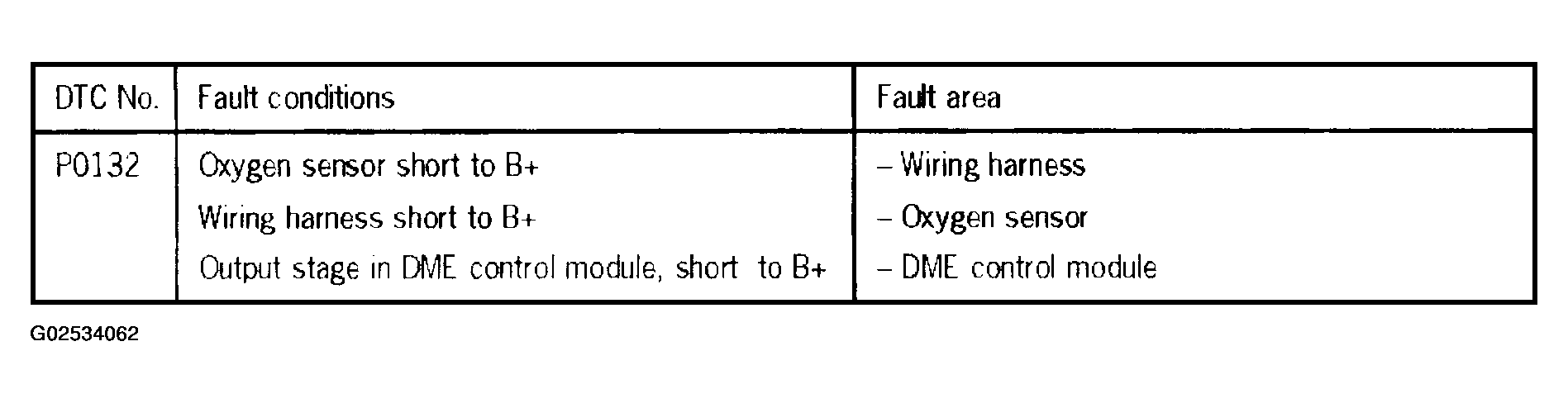

Fig 2: DTC P0132 Fault Conditions
G02534062Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE: The fault is stored after 2 minutes.
