DTC P0130: Oxygen Sensor Ahead of TWC, Bank 1 - Signal Implausible: Wiring Diagram

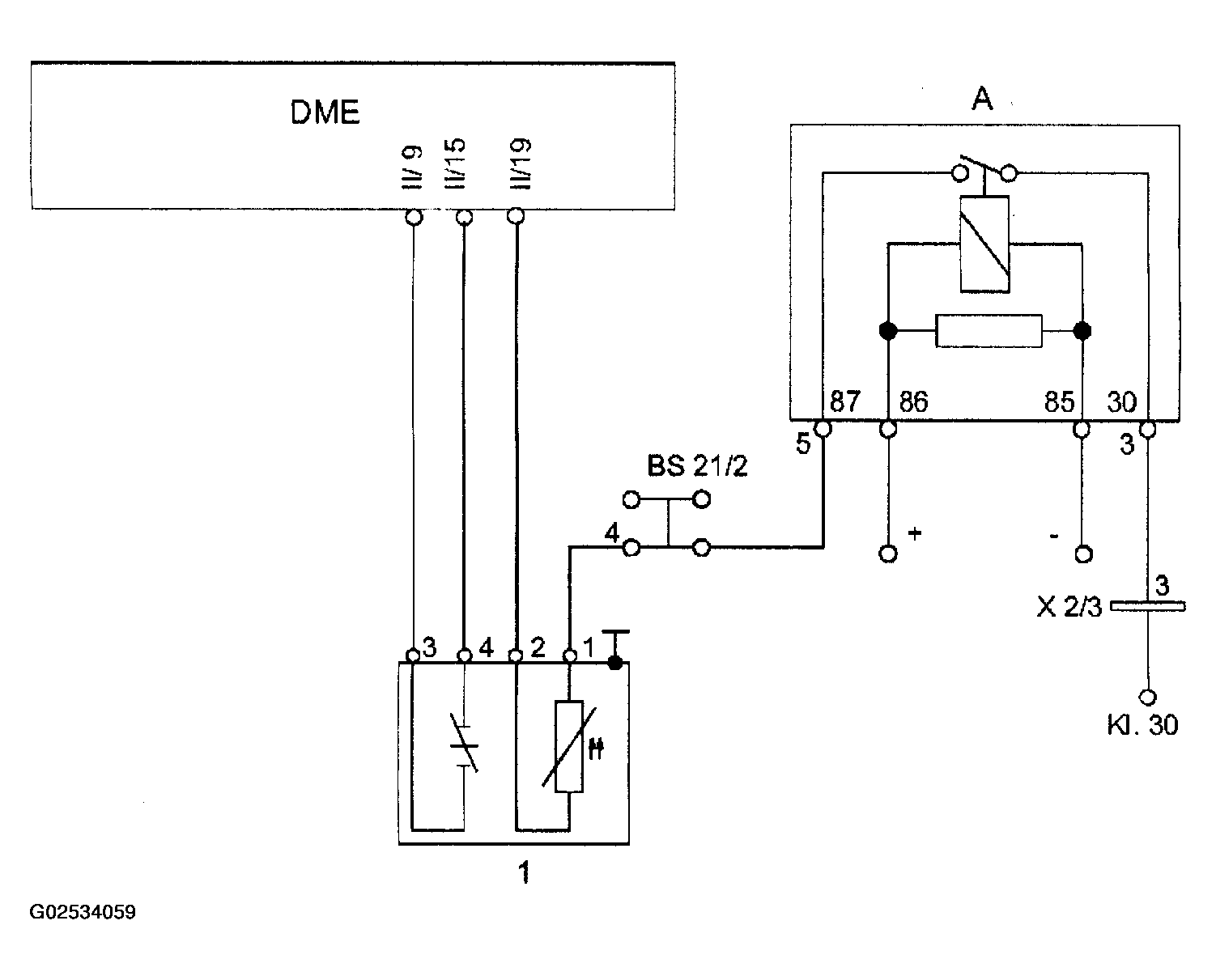

Fig 1: DTC P0130 Wiring Diagram

G02534059

Courtesy of PORSCHE OF NORTH AMERICA, INC.
