DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P0130: Oxygen Sensor Ahead of TWC, Bank 1 - Signal Implausible
>>
10 Oxygen Sensor Ahead of TWC, Bank 1 - Signal Implausible
>>
Diagnosis conditions
Diagnosis conditions

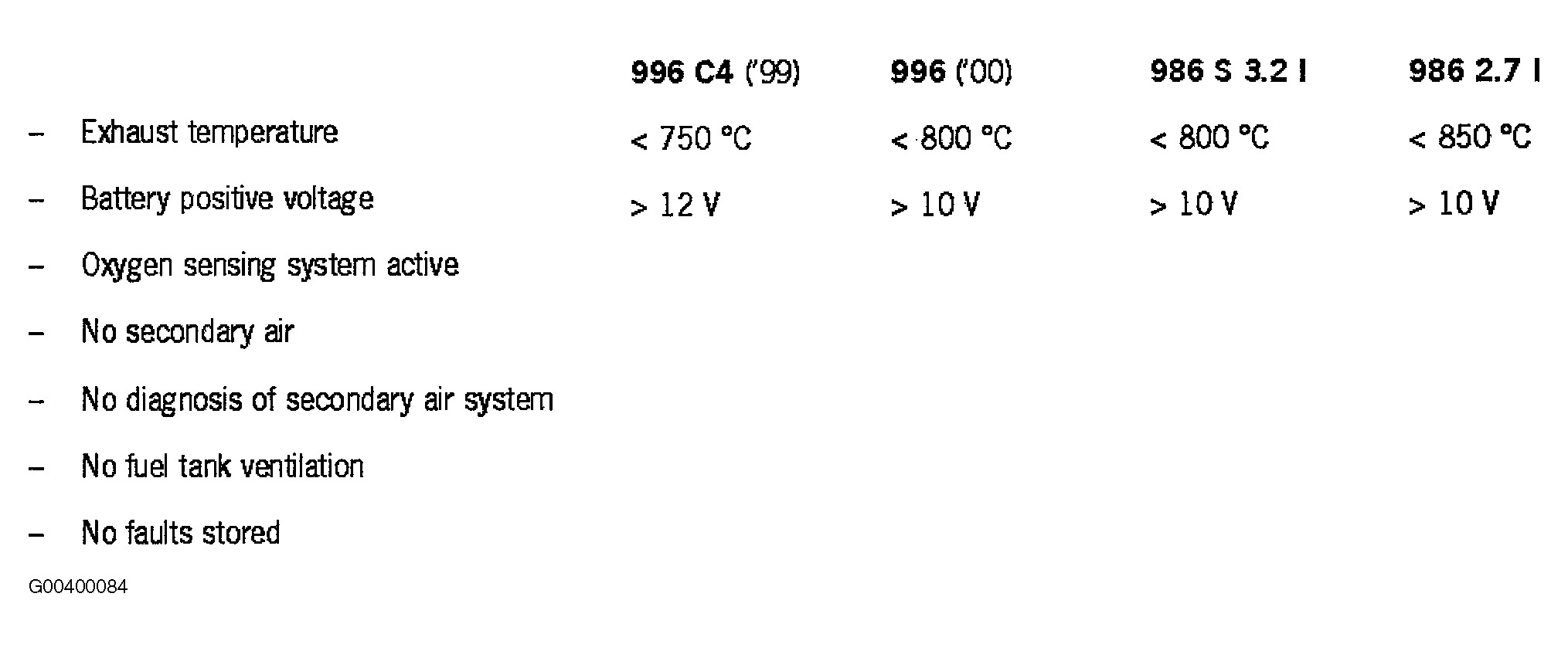

Fig 1: DTC P0130 Diagnosis Conditions
Courtesy of PORSCHE OF NORTH AMERICA, INC.

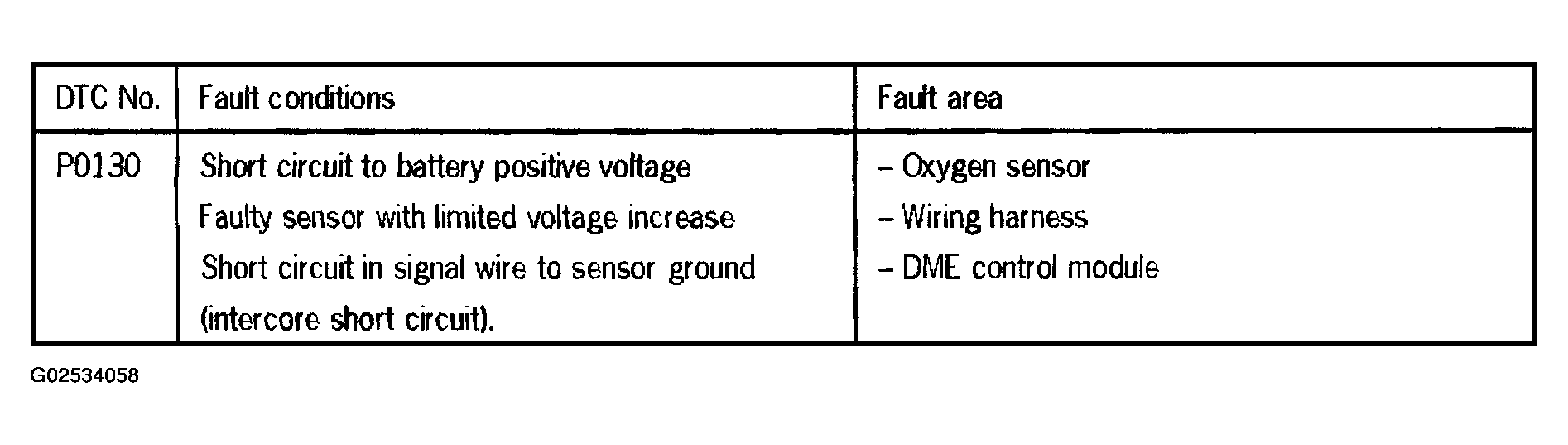

Fig 2: DTC P0130 Fault Conditions
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
