Relay carrier 1 (in footwell)

Fuel pump

Relay in slot 13

Radiator fan 1 - stage 1

Relay in slot 19

Radiator fan 1 - stage 2

Relay in slot 20

Radiator fan 2 - stage 1

Relay in slot 21

Radiator fan 2 - stage 2

Relay in slot 22

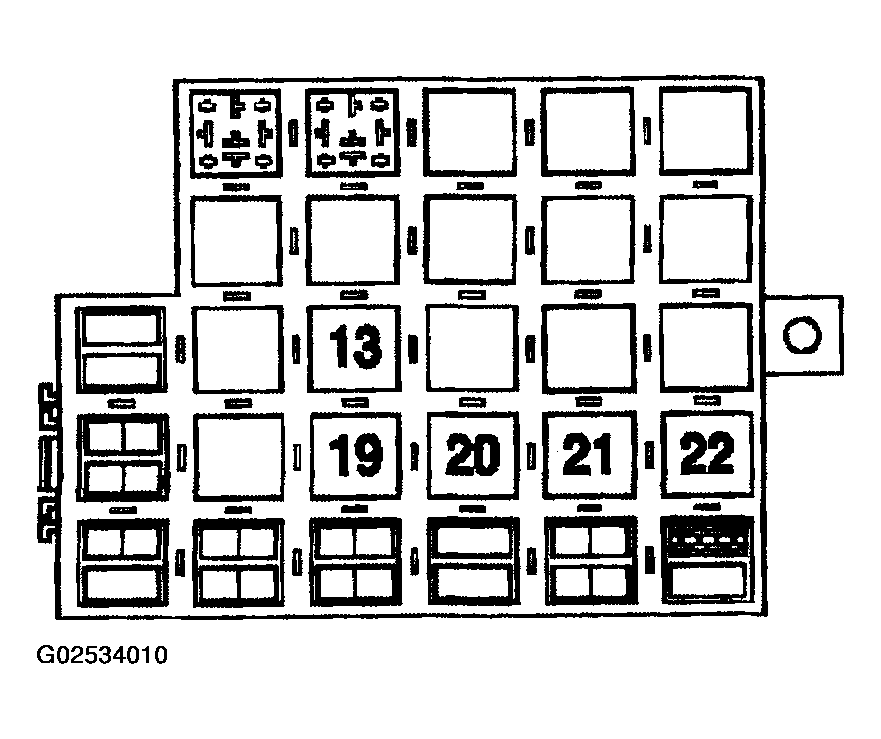

Fig 1: Identifying Relay Carrier 1 Relays
G02534010Courtesy of PORSCHE OF NORTH AMERICA, INC.
