Plug No. 6

The plug consists of three individual plugs which are clipped together (Figure ). Two individual plugs have 3 poles each, the third has 2 poles. When it is clipped together, plug no. 6 has 8 poles.

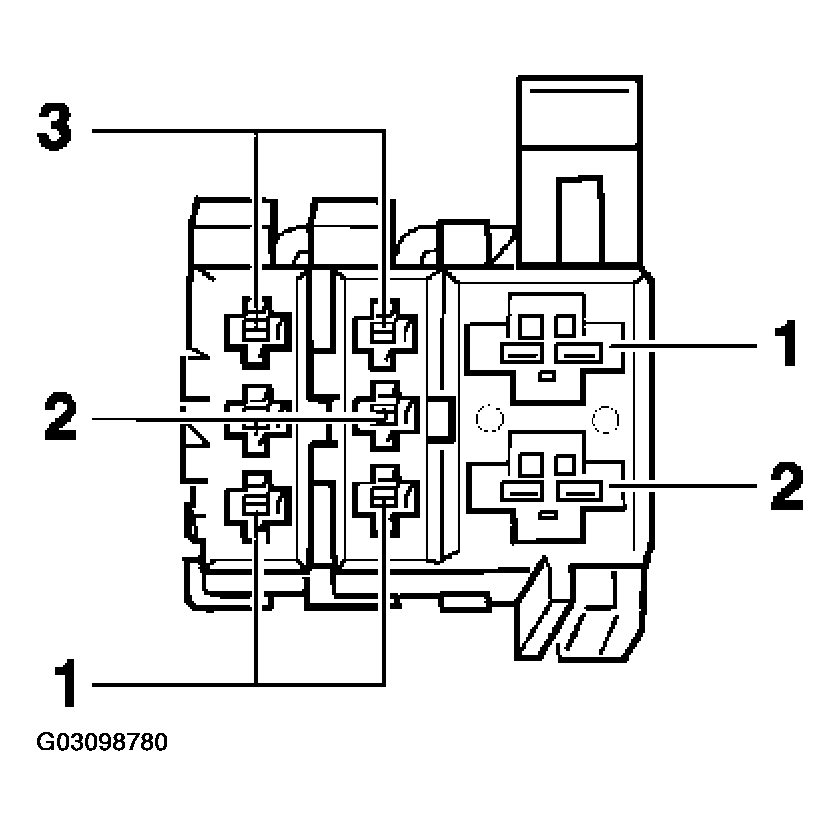

Fig 1: Identifying Plugs On Control Module (Plug No. 6)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
