Adjusting the lower stop of the power window unit

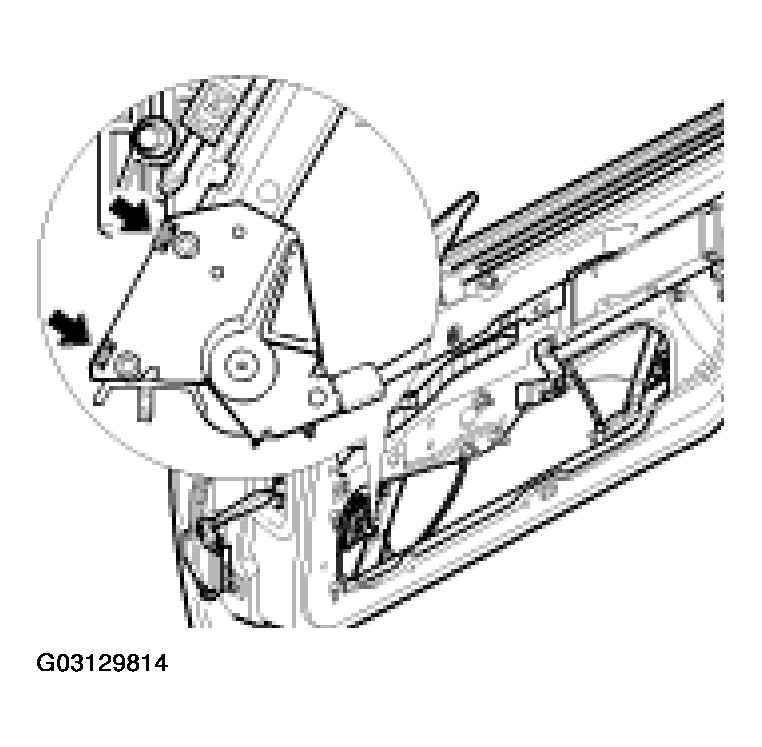

Fig 1: Adjusting Lower Stop Of Power Window Unit
G03129814Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • When replacing the power window unit, make sure that the correct position of the lower limit stop is selected for the respective model.
  • There are two bores lying one above the other with the screwed-on limit stops in the front power window unit rail.
  • A limit stop for the model 986, 986S must not be removed.
