Camshafts Of Cylinder Bank 4 - 6

Identification on the camshaft

CAMSHAFT IDENTIFICATION CODE (CYLINDER BANK 4 - 6)

Inlet camshaft: 216.04/2.5 IN 46
Exhaust camshaft: 218.04/2.5 EX 46

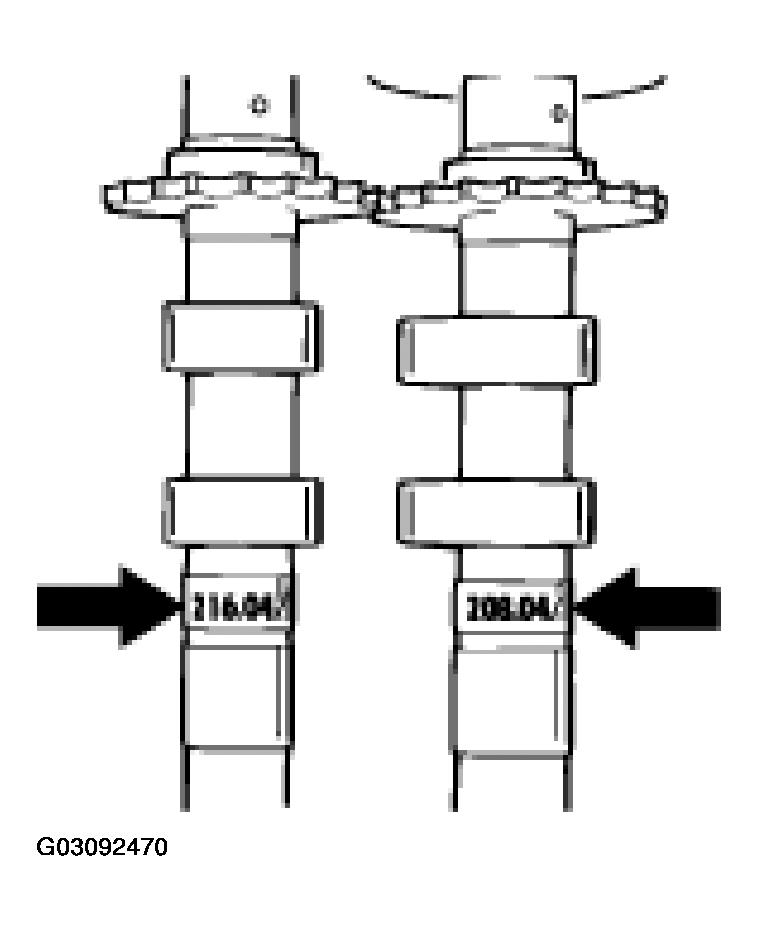

Fig 1: Locating Camshaft Identification Marks
G03092470Courtesy of PORSCHE OF NORTH AMERICA, INC.
