LEMON Manuals: Even more car manuals for everyone
Home >> Porsche >> 1998 >> Boxster Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Radio, Navigation, Telephone, Pcm & Park Assistant - Diagnosis >> Component arrangement - MMI >> Notes

Component arrangement - MMI: Notes

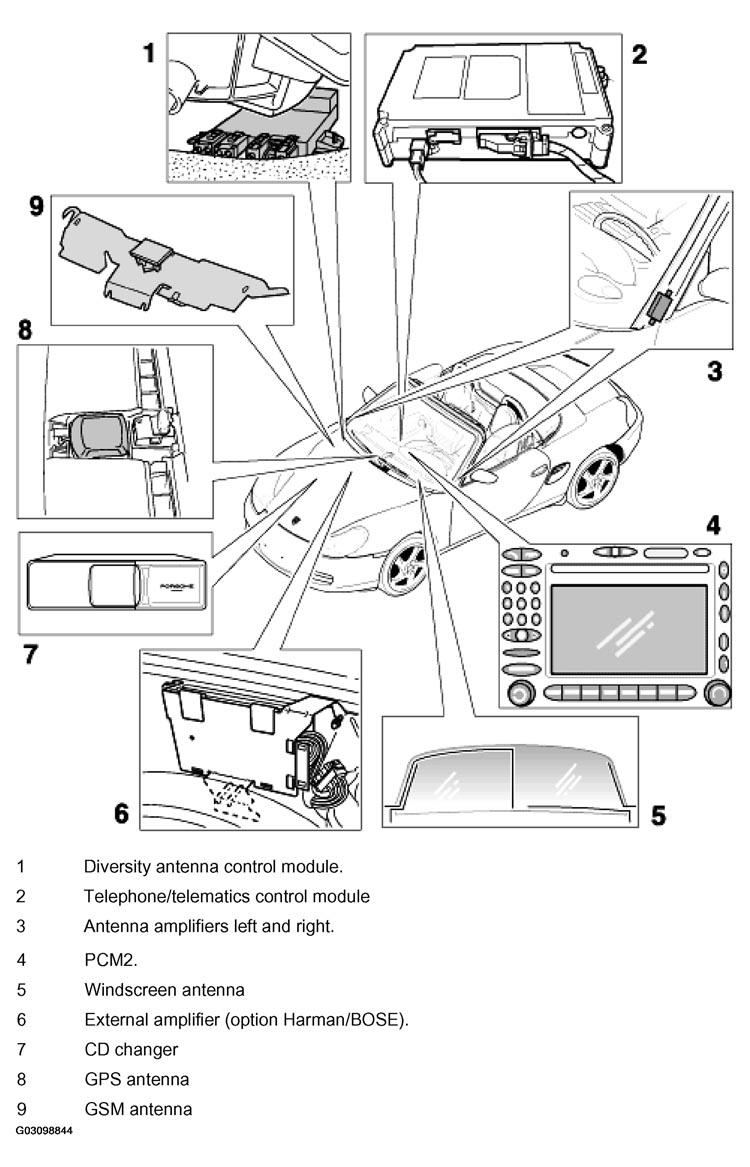

Fig 1: Identifying Component Arrangement - MMI
G03098844Courtesy of PORSCHE OF NORTH AMERICA, INC.
