Function of the components

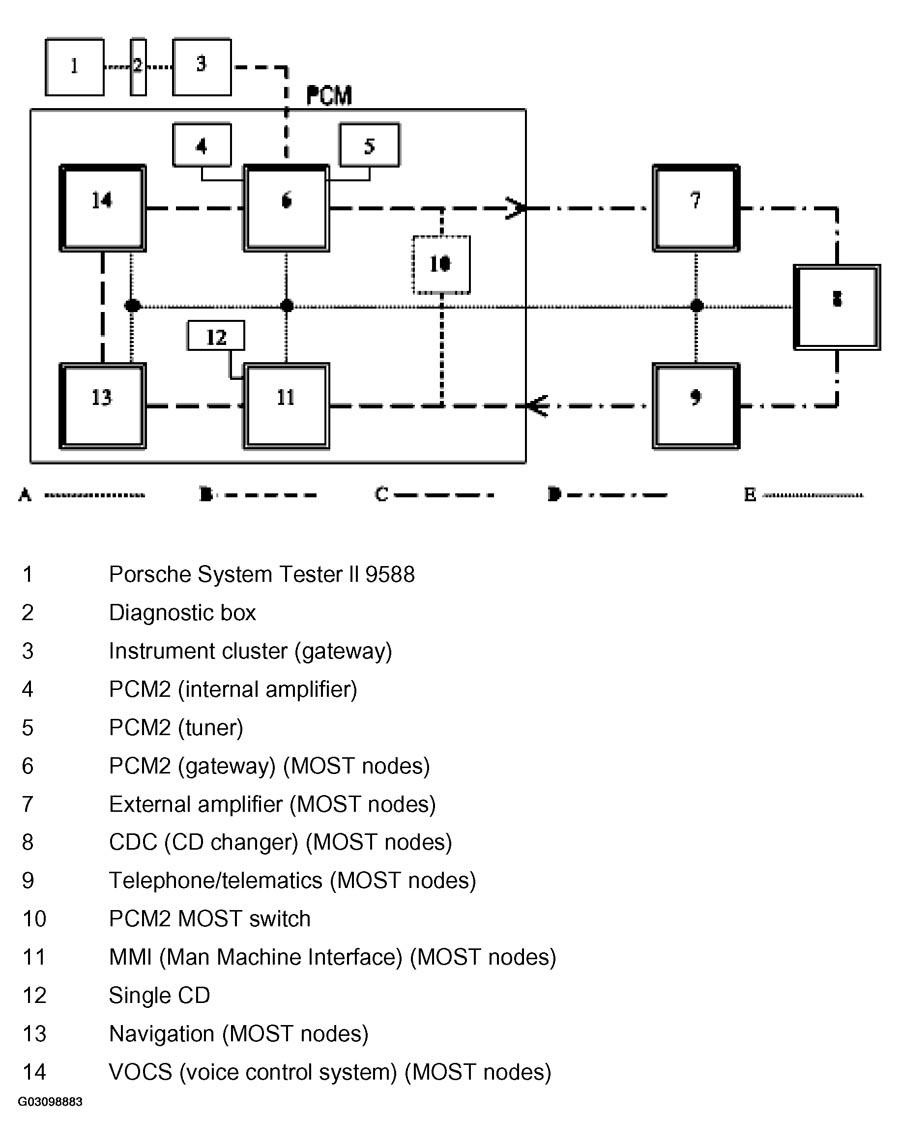

Fig 1: Identifying Communication Circuit - Telephone/Telematics
G03098883Courtesy of PORSCHE OF NORTH AMERICA, INC.
