Function of individual components

1. Shift lever

   The ParkAssistant is activated by engaging reverse gear with the ignition switched on (shift lever position R). During diagnosis the reverse gear must be engaged for this system. Otherwise the PST 2 cannot read out the control module.

2. Control module

   The control module is installed under the driver's seat and is protected by a cover plate.

3. Loudspeaker in the instrument cluster

   The loudspeaker is integrated into the instrument cluster and is actuated by the ParkAssistant control module. The loudspeaker emits the following signals:

   SIGNAL SPECIFICATION - PARKASSISTANT SPEAKER



   Signal type	Tone type
   System readiness	0.5 sec. continuous tone, 1200 Hz.
   Error message	Continuous tone after switching on each time, 600 Hz.
   Obstacle detection	Signal tone with tone break. Tone break is distance sensitive. Continuous tone from a distance of 30 cm, 1200 Hz.

4. Sensors for ParkAssistent

   Four ultrasound sensors are installed in the rear spoiler.

The sensor for ParkAssistant consists of the following components together with the support:

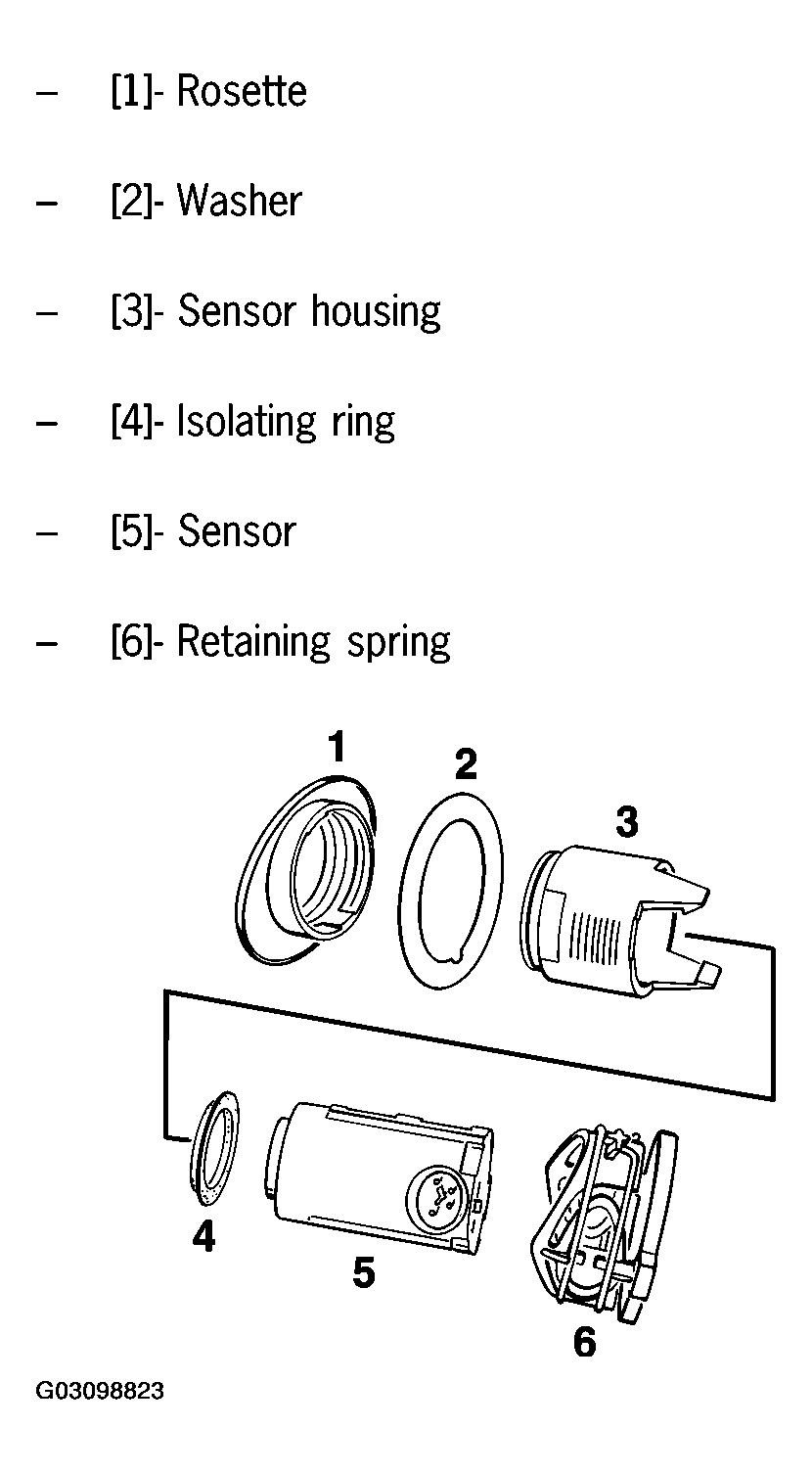

Fig 1: Identifying Components Of Sensor For ParkAssistant Sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.
