Connector Pin Assignment, Navigation Unit

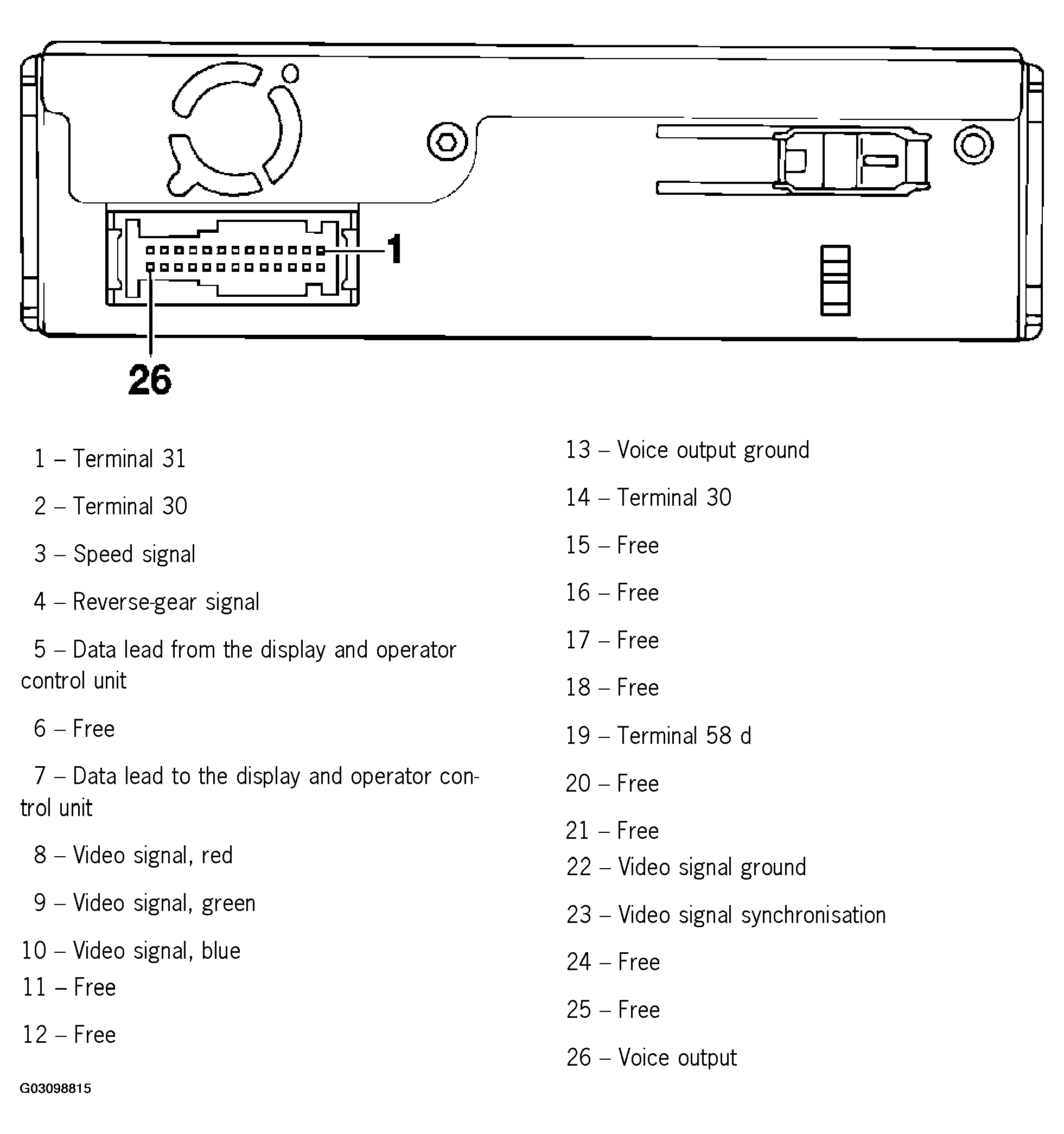

Fig 1: Connector Pin Assignment Of Navigation Unit

G03098815

Courtesy of PORSCHE OF NORTH AMERICA, INC.
