Connector Pin Assignment, Display And Operator Control Unit

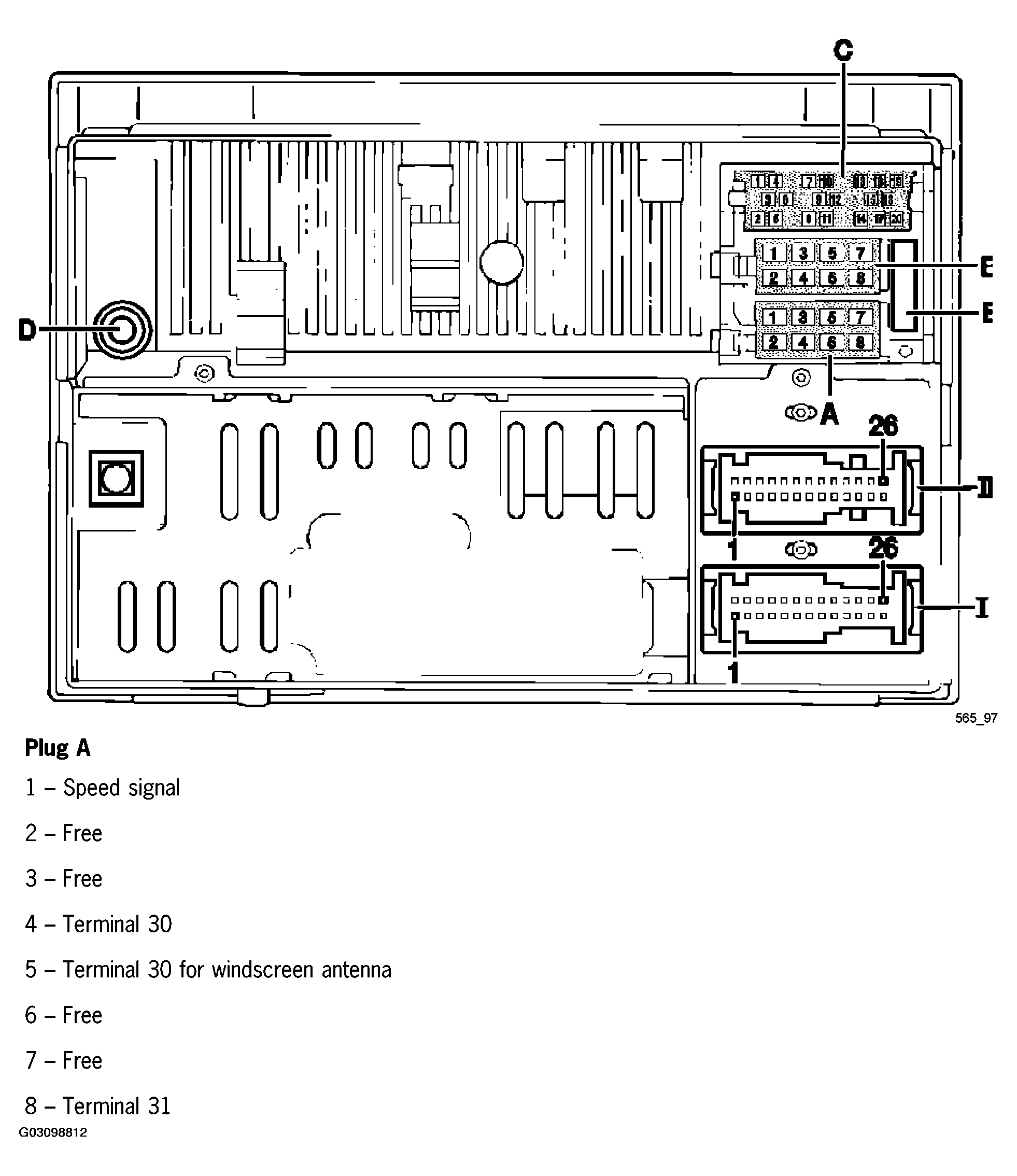

Fig 1: Identifying Connector Pin Assignment Of Display And Operator Control Unit Of Radio System (1 Of 3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

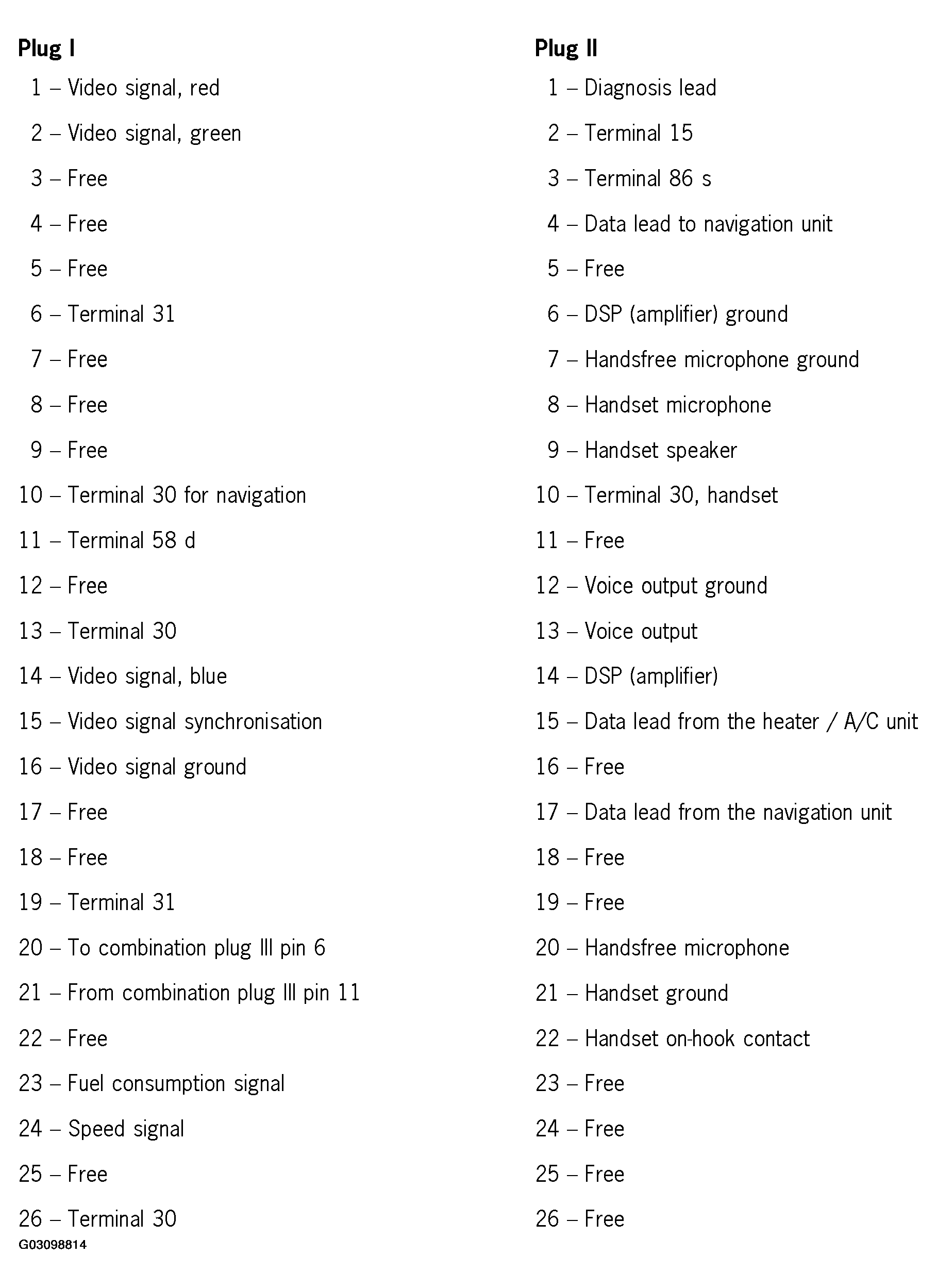

Fig 2: Identifying Connector Pin Assignment Of Display And Operator Control Unit Of Radio System (2 Of 3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

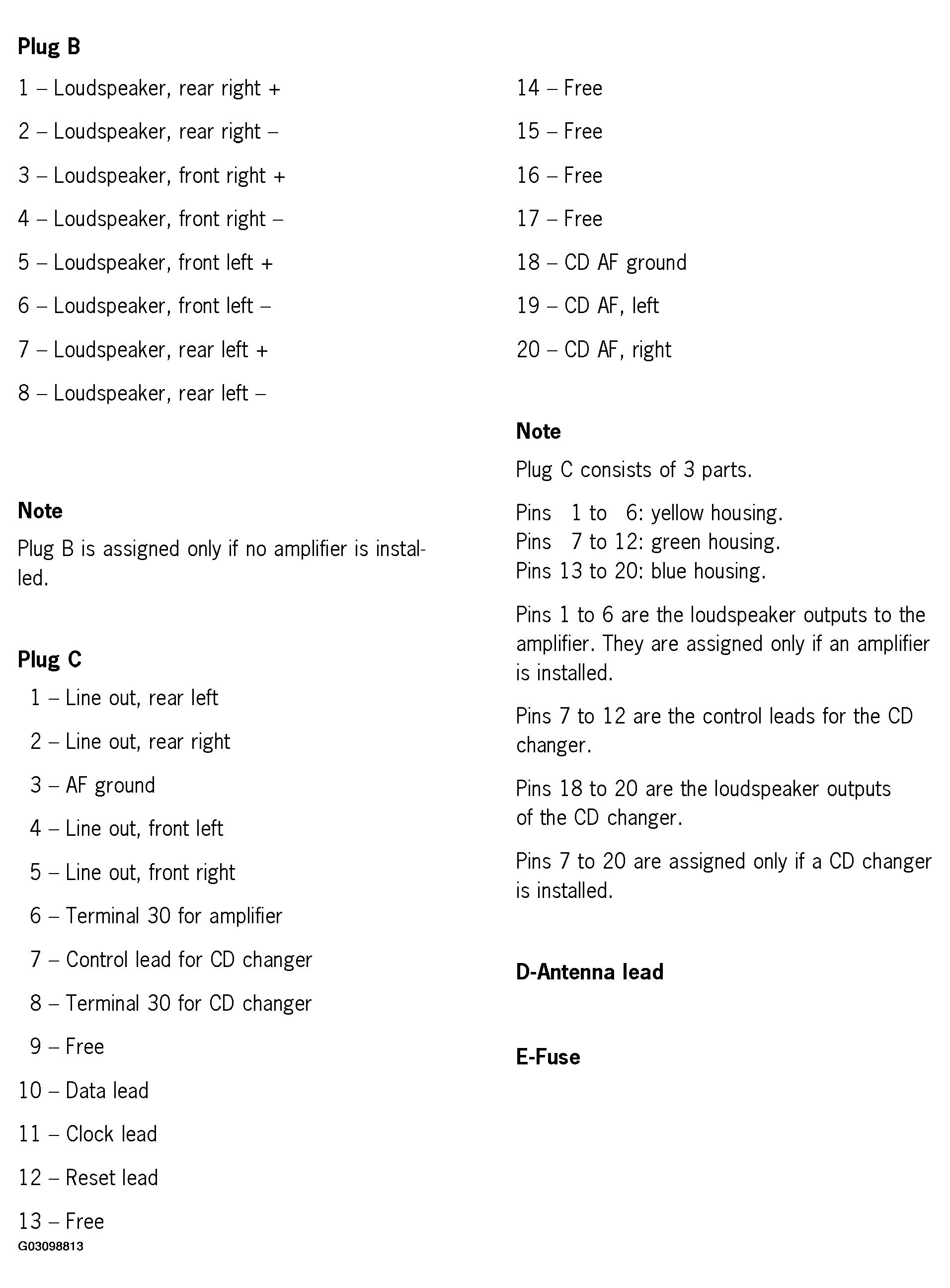

Fig 3: Identifying Connector Pin Assignment Of Display And Operator Control Unit Of Radio System (3 Of 3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
