WARNING: Danger of injury through triggering of driver's airbag

Never hang the Porsche System Tester II 9588 over the steering wheel.
Always place tools and special tools outside the functioning range of all airbags!

NOTE:

Plug contacts are optimally designed to suit the plug system. Operations on pins can cause contact problems. Only use suitable measurement tools, adapter plugs and test cables.

The following testers are required for vehicle diagnosis:

Porsche System Tester II 9588

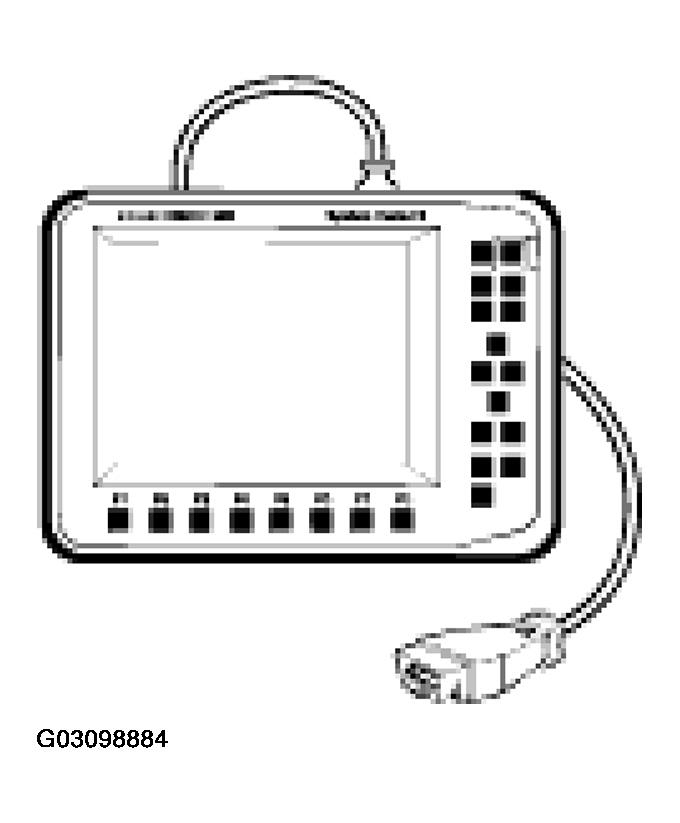

Fig 1: Identifying Porsche System Tester II 9588

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Commercially available digital multimeter

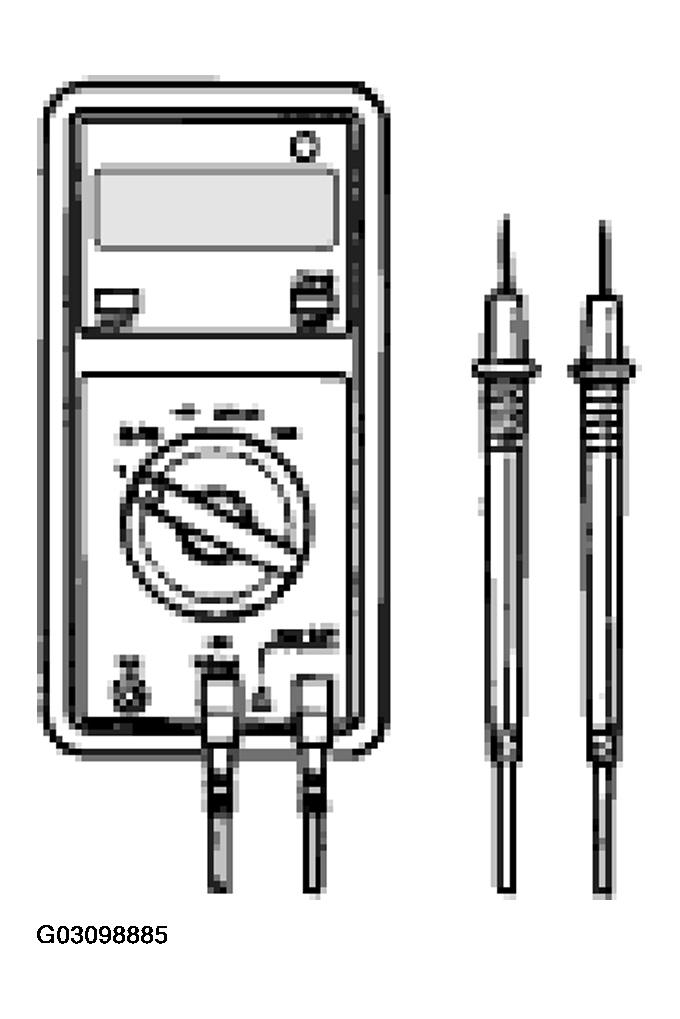

Fig 2: Identifying Commercially Available Digital Multimeter

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Measurement tool set 9684

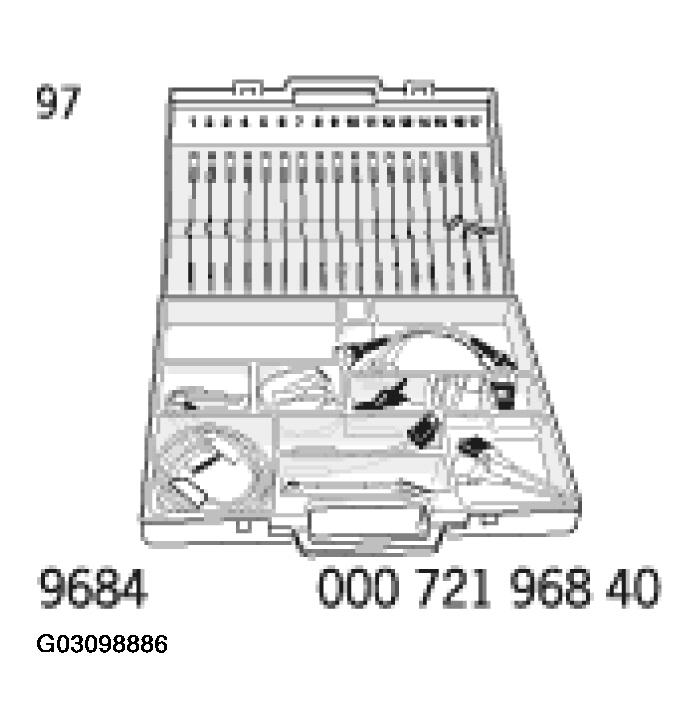

Fig 3: Identifying Measurement Tool Set 9684

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Optical waveguide test line 9712

Fig 4: Identifying Optical Waveguide Test Line 9712

Courtesy of PORSCHE OF NORTH AMERICA, INC.
